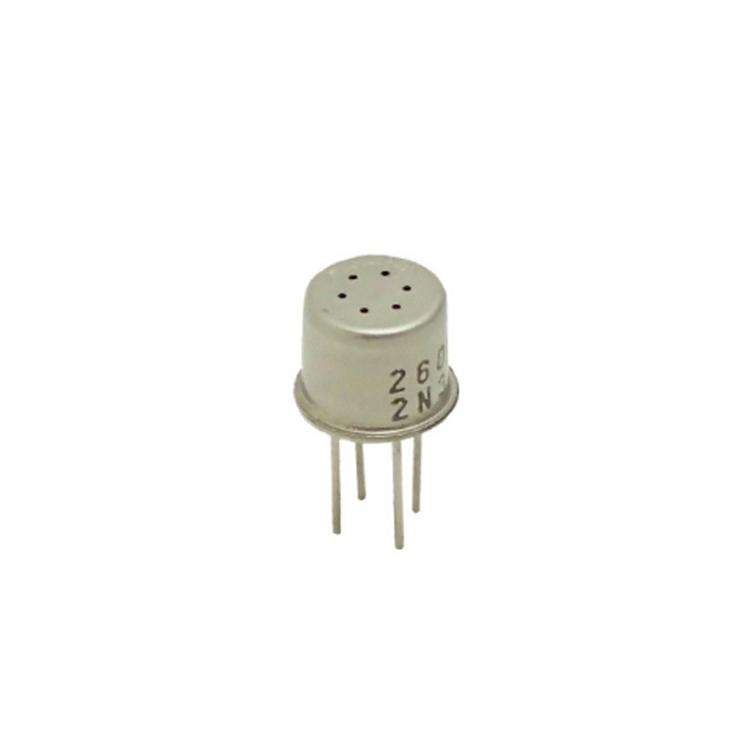

Japan Figaro Air Contaminant Detection Gas SensorTGS2609-B00 Description:
The sensing element is composed of an integrated heater and a metal oxide semiconductor on an alumina substrate. If the target gas is present in the air, the higher the gas concentration, the higher the conductivity of the sensor. A simple circuit can convert the change in conductivity into a signal output corresponding to the gas concentration.
TGS2609-B00 has high sensitivity to extremely weak air pollution gases. It can detect hydrogen or carbon monoxide present in cigarette smoke at concentrations of a few ppm. Due to miniaturization, the heater current is only 42mA, and the housing uses a standard TO-5 metal package.
Low power consumption
High sensitivity to polluted air
Long life and low cost
Simple application circuit
Small size
Japan Figaro Air Contaminant Detection Gas SensorTGS2609-B00 Applications:
Air purifier control
Ventilation control
Air quality monitoring

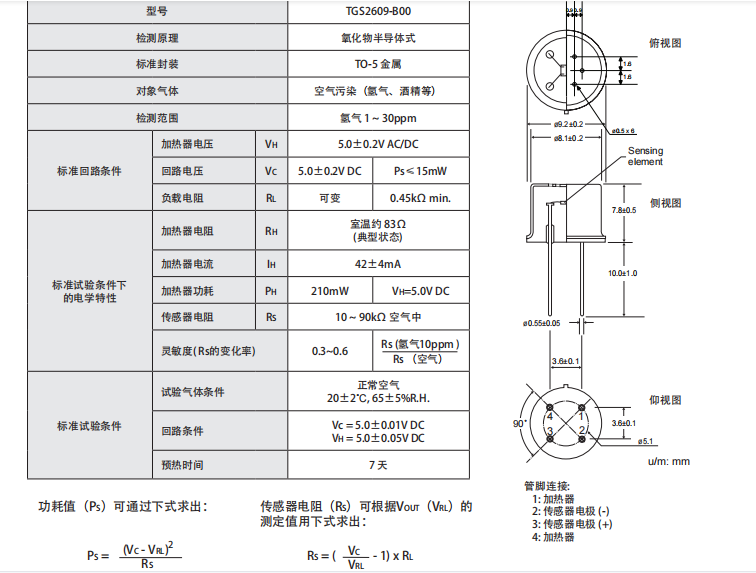

Japan Figaro Air Contaminant Detection Gas SensorTGS2609-B00 ：
