Product introduction

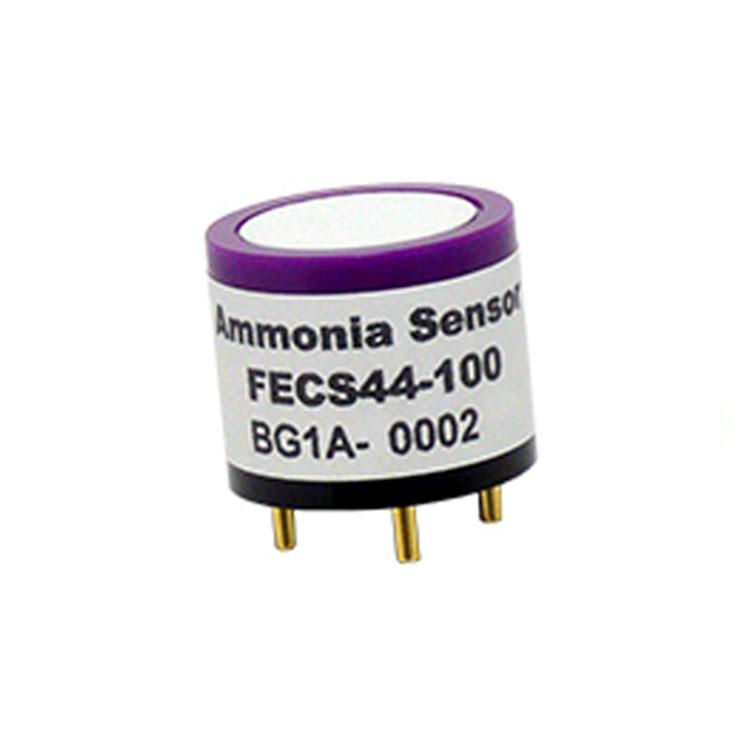

1. Japan Figaro ammonia sensor high sensitivity leak-proof linear output FECS44-100 description:
Figaro's ammonia sensor FECS44 is a unique electrochemical NH3 sensor. Its most notable features are low interference from H2S, excellent durability when exposed to NH3, and a unique leak-proof structure. These characteristics make the sensor better suited for NH3 detectors and monitors.
2. Japan Figaro ammonia sensor high sensitivity leak-proof linear output FECS44-100 features:
High sensitivity to NH3
Low interference from H2S
Excellent durability when exposed to NH3
Linear output
Long life
Stable baseline
Unique leak-proof structure
3. Japan Figaro ammonia sensor high sensitivity leak-proof linear output FECS44-100 applications:
Portable and fixed NH3 detectors
NH3 monitors
NH3 leak detection in refrigeration equipment
4. Japan Figaro ammonia sensor high sensitivity leak-proof linear output FECS44-100 specifications:
| Model |
FECS44-100 |
FECS44-200 |
| Detected gas |
NH3 |
|
| Range |
0~100ppm |
0~200ppm |
| Overload |
200ppm |
500ppm |
| Output signal |
100±30nA/ppm(*) |
40±12nA/ppm(*) |
| Repeatability |
±10% (*) |
|
| Resolution |
1 ppm (*) |
2 ppm (*) |
| Typical baseline range (clean air) |
< ±2 ppm (*) |
< ±4ppm (*) |
| Typical response time (t90) |
60 sec (*) |
90 sec (*) |
| Baseline drift (-20 ~ 50°C) |
< 3 ppm(*) |
< 6 ppm(*) |
| Long-term output drift |
< 2% /month (*) |
|
| Expected service life |
Over 2 years (*) |
|
| Operating temperature |
-30 ~ 50˚C |
|
| Operating humidity |
15 ~ 90% RH |
|
| Operating pressure range |
1013 hPa ±10% |
|
| Recommended load resistor |
33Ω |
|
| Reference voltage |
Not required |
|
| Position sensitivity |
None |
|
| Recommended storage temperature |
0 ~ 20˚C |
|
| Storage life |
Less than 6 months |
|
| Appearance color |
Purple |
|
| Weight |
4.5g (approx.) |
|
