Product introduction

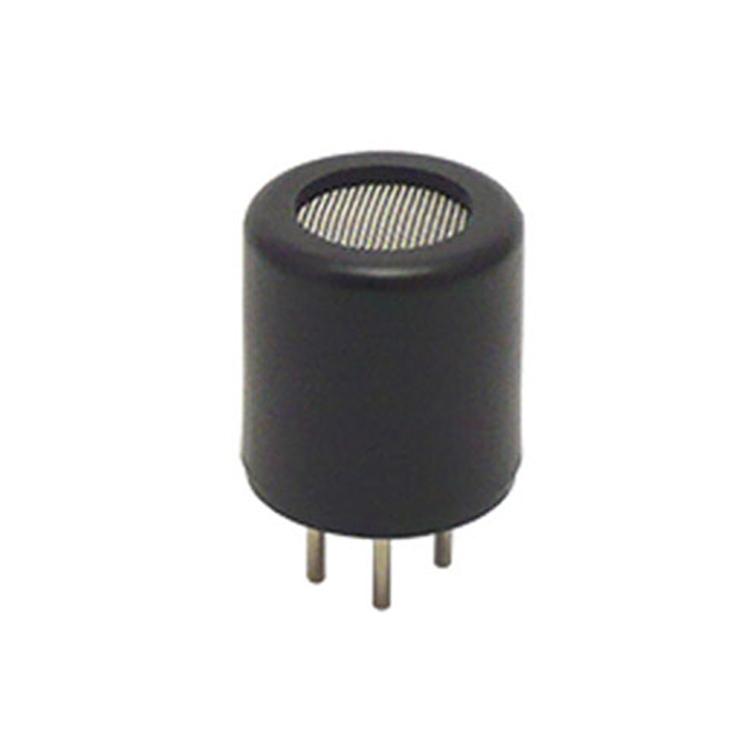

I. Japan Figaro catalytic combustion typeflammable gas sensorTGS6812 description:
TGS6812-D00 is a catalytic combustion type flammable gas sensor that can detect hydrogen at 100% LEL level. This sensor features high accuracy, good durability and stability, fast response, and linear output. It can not only monitor hydrogen but also be used to detect methane and LP gas. This is an excellent solution for leak detection when hydrogen is used as a flammable gas in stationary fuel cells. The TGS6812-D00 has an adsorbent inside the cap, resulting in low cross-sensitivity to organic vapors. In addition, this sensor has better tolerance to silicon compounds and is more suitable for harsh environments.
II. Features of Japan Figaro catalytic combustion type flammable gas sensor TGS6812:
* Linear output* Long service life
* Low sensitivity to alcohol
* High sensitivity to hydrogen, methane, LP gas, etc.
III. Applications of Japan Figaro catalytic combustion type flammable gas sensor TGS6812:
* For monitoring hydrogen and flammable gas leaks in fuel cells* Industrial and commercial flammable gas leak detection
IV. Sensitivity characteristics of Japan Figaro catalytic combustion type flammable gas sensor TGS6812:
The figure below shows representative sensitivity characteristic curves measured under standard test conditions (see back).The vertical axis represents the sensor output sensitivity - ΔVout (mV):
ΔVout = Vout (in gas) - Vout (in air)
