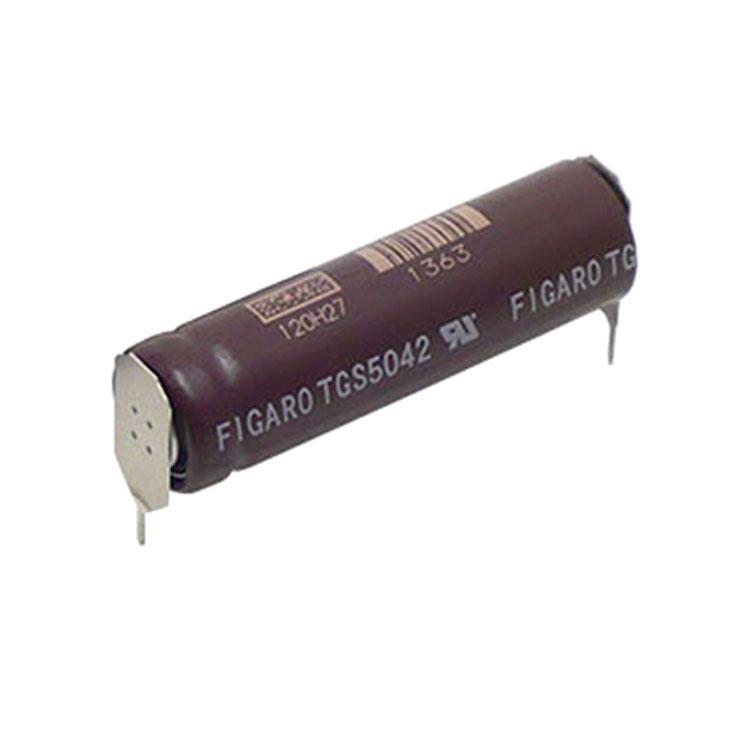

I. Japanese Figaro ElectrochemicalCarbon monoxide sensor(CO sensor) TGS5042Description

TGS5042 is a battery-driven sensor developed by FigaroElectrochemical carbon monoxide sensorCompared with existing electrochemical sensors, it has the following advantages: the electrolyte is environmentally friendly; there is no risk of electrolyte leakage; the detectable carbon monoxide concentration is up to 1%, with a wide operating temperature range (-5˚C ~ 55˚C); and low sensitivity to interfering gases. This sensor features long service life, good long-term stability, and high accuracy, making it one of the few ideal sensor options for digital display applications. OEM customers will find that through the barcode on each sensor, individual sensor data can be printed separately, allowing users to avoid expensive gas calibration procedures and also enabling tracking of individual sensors. The CO sensor TGS5042 adopts a standard AA battery size form factor.

II.Japanese Figaro electrochemical carbon monoxide sensor (CO sensor) TGS5042Features:
* Battery operable
* High selectivity/repeatability to carbon monoxide
* High linear output characteristics to carbon monoxide
* Easy calibration
* Long service life
* UL certified
* Meets UL2034, EN50291 and RoHS requirements

III. Japanese FigaroElectrochemical carbon monoxide sensor (CO sensor) TGS5042Typical applications:
* Residential and commercial carbon monoxide detectors
* Industrial carbon monoxide monitoring
* Indoor parking lot ventilation control
* Fire alarms

IV.Japanese Figaro electrochemical carbon monoxide sensor (CO sensor) TGS5042Parameters:

Model	TGS5042-A00 (pin type), TGS5042-B00 (metal tape type)
Target gas	Carbon monoxide
Typical detection range	0 ~ 10,000ppm
Output current	1.2~2.4nA/ppm
Baseline offset	< ±10ppm equivalent
Operating temperature range	0˚C ~ +50˚C (normal use), -5˚C ~ +55˚C (occasional)
Operating humidity range	5 ~ 99%RH (non-condensing)
Response time (T90)	Within 60 seconds
Storage temperature conditions	-5˚C ~ +55˚C
Net weight	Approx. 12g
Standard test conditions	20±2˚C, 40±10%RH

V. Sensitivity characteristics of Japanese Figaro electrochemical carbon monoxide sensor (CO sensor) TGS5042:

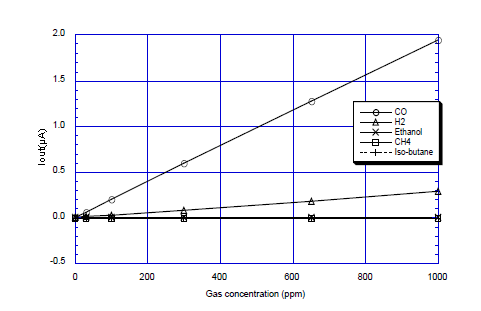

The figure below shows representative sensitivity characteristic curves measured under standard test conditions (see back).
The ordinate represents the output current (IOUT/μA) of the sensor in various gases. The output current shows high linearity with a deviation within ±5% in the range of 0 to 500ppm, indicating high selectivity to carbon monoxide.

VI. Temperature/humidity characteristics of electrochemical carbon monoxide sensor (CO sensor) TGS5042:

The figure below shows representative temperature/humidity characteristic curves measured under standard test conditions (see back).
The ordinate represents the sensor output ratio (I/Io), defined as follows:
The linear relationship between the I/Io value and carbon monoxide concentration is constant, regardless of the range of carbon monoxide concentration values.
I = sensor output current in 400ppm carbon monoxide at various temperatures
Io = sensor output current in 400ppm carbon monoxide at 20°C, 50% R.H.
