Product introduction

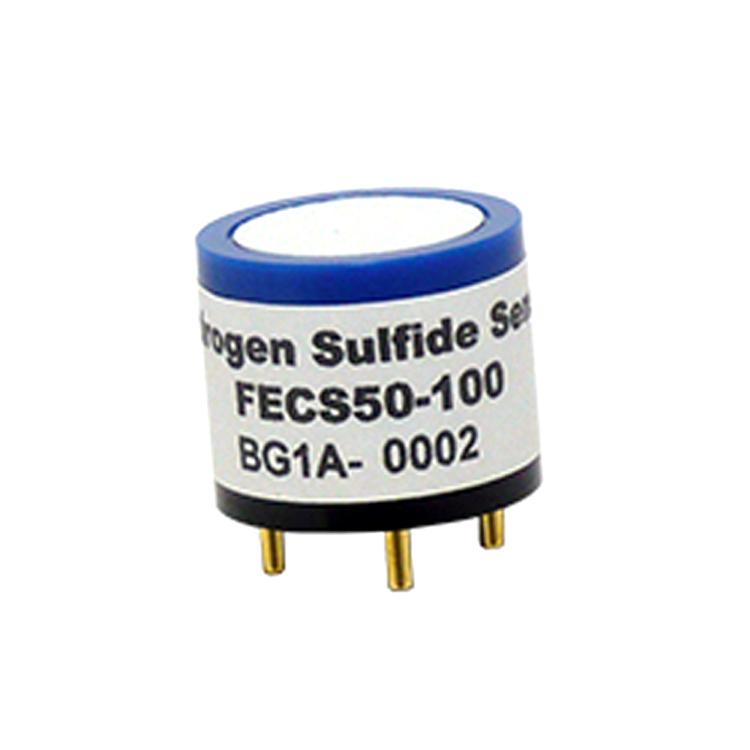

1. Description of Japan Figaro electrochemical hydrogen sulfide sensor, high sensitivity, leak-proof, linear output FECS50-100-H2S:
Figaro's hydrogen sulfide sensor FECS50-100 is a unique electrochemical hydrogen sulfide sensor. Its most notable features are low cross-sensitivity to CO and its unique leak-proof structure, making it very suitable for hydrogen sulfide monitors and H2S detector applications in various fields.
2. Features of Japan Figaro electrochemical hydrogen sulfide sensor, high sensitivity, leak-proof, linear output FECS50-100-H2S:
High sensitivity/selectivity to H2S
Linear output
Long life
Stable baseline
Unique leak-proof structure
Fast response to H2S
3. Applications of Japan Figaro electrochemical hydrogen sulfide sensor, high sensitivity, leak-proof, linear output FECS50-100-H2S:
Portable and fixed H2S detectors
H2S detection
4. Parameters of Japan Figaro electrochemical hydrogen sulfide sensor, high sensitivity, leak-proof, linear output FECS50-100-H2S:
| Detection gas |
H2S |
| Range |
0 ~ 100 ppm |
| Overload |
500 ppm |
| Output signal |
700 ± 150 nA/ppm (*) |
| Repeatability |
±2% (*) |
| Resolution |
0.1 ppm (*) |
| Typical baseline range (pure air) |
-0.1 to +0.4ppm(*) |
| Typical response time (t90) |
< 30 sec (*) |
| Baseline drift (-20 ~ 50˚C) |
< 0.5 ppm(*) |
| Long-term stable output drift |
< 2% /month (*) |
| Expected service life |
> 2 years (*) |
| Operating temperature |
-40 ~ 50˚C |
| Operating humidity |
15 ~ 90% RH |
| Operating pressure range |
1013 hPa ±10% |
| Recommended load resistor |
10 Ω |
| Reference voltage |
Not required |
| Position sensitivity |
None |
| Recommended storage temperature |
0 ~ 20˚C |
| Storage life |
Less than 6 months |
| Appearance color |
Dark blue |
| Weight |
4.5g (approx.) |
