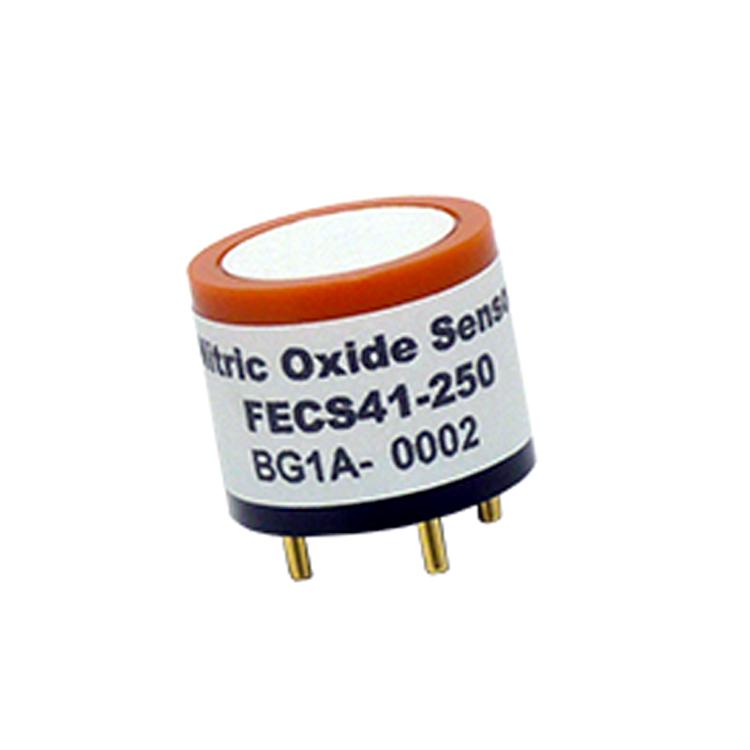

Japan Figaro Electrochemical Nitric Oxide Sensor High Sensitivity Leak-Proof Linear Output - FECS41-250-NO
Detection Gas: NO
Range: 0 ~ 300 ppm
Max Overload: 1000 ppm
Output Signal: 400 ± 80 nA/ppm
Repeatability: ±2%
Resolution: 0.5 ppm
Operating Temperature: -20 ~ 50°C
Operating Humidity: 15 ~ 90% RH
Product Introduction
1. Japan Figaro ElectrochemicalNitric Oxide SensorFECS41-250-NO Description:
Figaro's nitric oxide sensor FECS41-250 is a unique electrochemical nitric oxide sensor. Its most notable feature is its unique leak-proof structure, making it very suitable for carbon monoxide monitors and NO detector applications in various fields.
2. Japan Figaro Electrochemical Nitric Oxide Sensor FECS41-250-NO Features:
High sensitivity/selectivity to NO
Fast response to NO
Linear output
Long life
Stable baseline
Unique leak-proof structure
3. Japan Figaro Electrochemical Nitric Oxide Sensor FECS41-250-NO Applications:
Portable and fixed NO detectors
NO detection
Ventilation control in indoor parking lots
4. Japan Figaro Electrochemical Nitric Oxide Sensor FECS41-250-NO Parameters:
| Detection Gas |
NO |
| Range |
0 ~ 300 ppm |
| Max Overload |
1000 ppm |
| Output Signal |
400 ± 80 nA/ppm (*) |
| Repeatability |
±2% (*) |
| Resolution |
0.5 ppm (*) |
| Typical Baseline Range (pure air) |
< 3 ppm(*) |
| Typical Response Time (t90) |
< 40 sec (*) |
| Baseline Drift (-20 ~ 50°C) |
< 4 ppm(*) |
| Long-term Stable Output Drift |
< 2% /month (*) |
| Expected Service Life |
> 2 years (*) |
| Operating Temperature |
-20 ~ 50°C |
| Operating Humidity |
15 ~ 90% RH |
| Operating Pressure Range |
1013 hPa ±10% |
| Recommended Load Resistor |
10 Ω |
| Reference Voltage |
+300 mV |
| Position Sensitivity |
None |
| Recommended Storage Temperature |
0 ~ 20°C |
| Storage Life |
Less than 6 months |
| Appearance Color |
Orange |
| Weight |
Approximately4.5g |
