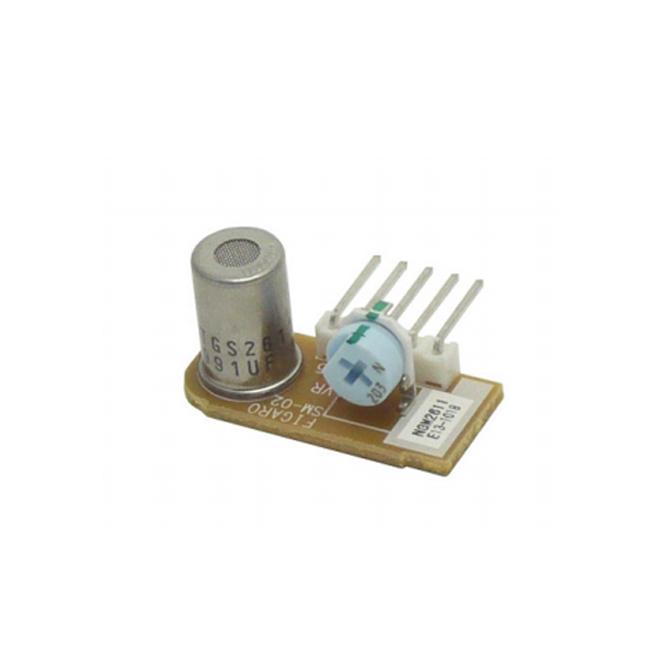

Japan FIGARO Methane Pre-calibration Module Natural Gas Alarm - NGM2611-E13
Complies with the new national standard
Anti-poisoning, resistant to high-concentration flooding, and resistant to drops
Good stability
Uses anti-interference sensor TGS2611
Small size
Complies with ROHS requirements
Product Introduction
1. Description of Japan FIGARO Methane Pre-calibration Module Natural Gas Alarm NGM2611:
NGM2611This is a pre-calibration module for natural gas alarms, whose precise calibration function comes from Figaro's temperature and humidity control device. The sensor TGS2611-E00 selected in this module is equipped with a filter that can eliminate interfering gases such as alcohol, thus providing higher selectivity for methane gas.Higher and faster response. In the process of manufacturing reliable civil gas alarms, the calibration of the alarm point is very important. This is a complex and time-consuming process that also requires significant investment in calibration equipment. Using this module can eliminate this costly calibration process, making it easier and simpler for users to manufacture civil natural gas alarms. Figaro provides users with a complex gas detector circuit design, which includes a temperature compensation circuit combined with a built-in thermistor, and a low-power methane gas sensor with individually adjustable load resistance.
The socket-type connection allows for easier periodic sensor replacement. This input/output socket simplifies the connection between the module and the main board. By simply replacing the module, the main board can be used for detectors for either methane or LP gas. The design of this module meets the performance requirements of EN50194 and UL1484.
2. Features of Japan FIGARO Methane Pre-calibration Module Natural Gas Alarm NGM2611:
Complies with the new national standard
Anti-poisoning, resistant to high-concentration flooding, and resistant to drops
Good stability
Factory calibration
Temperature compensation circuit
Uses anti-interference sensor TGS2611
Small size
Complies with ROHS requirements
3. Applications of Japan FIGARO Methane Pre-calibration Module Natural Gas Alarm:
* For civil natural gas alarm control
4. Circuit diagram of Japan FIGARO Methane Pre-calibration Module Natural Gas Alarm:
