Product Introduction

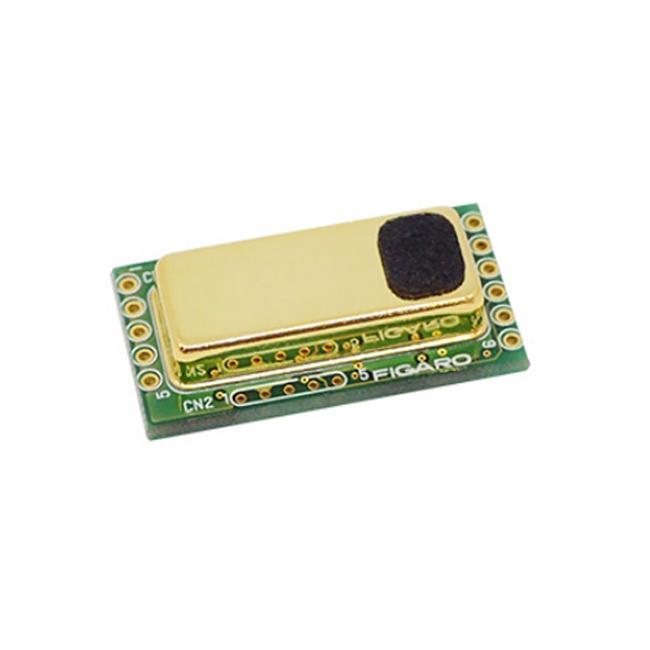

Japan Figaro CO2 NDIR Carbon Dioxide Sensor ModuleCDM7162-C00 Description:
CDM7162 features small size, low power consumption, and high accuracy. It is a high-performance non-dispersive infrared (NDIR) carbon dioxide (CO2) sensor module. Equipped with a pair of photodetectors and employing unique signal processing technology, it achieves long-term stable output.
Each module has both UART (asynchronous transceiver) and I2C (synchronous serial bus) digital interfaces, allowing individual calibration. The CDM7162 module is simple in design and can be easily integrated with user products. It is widely used in ventilation control for energy saving and indoor climate improvement.
Japan Figaro CO2 NDIR Carbon Dioxide Sensor ModuleCDM7162-C00Features:
Small size
Low power consumption
High accuracy
Single light source dual wavelength mode
Lithium-ion battery safety measures

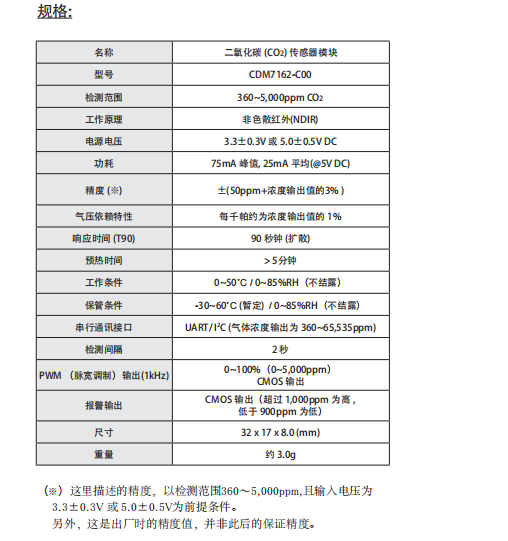

Japan Figaro CO2 NDIR Carbon Dioxide Sensor ModuleCDM7162-C00 Parameters:
