Canadian FISO Intracranial Pressure, Pulmonary Pressure, Arterial Blood Pressure Fiber Optic Pressure Sensor - FOP-M260
Applications
Cardiology: Left ventricular pressure, arterial blood pressure
Pharmacology: Drug and fluid injection
Neurology: Intracranial pressure
Spine: Intervertebral disc pressure
Product Introduction

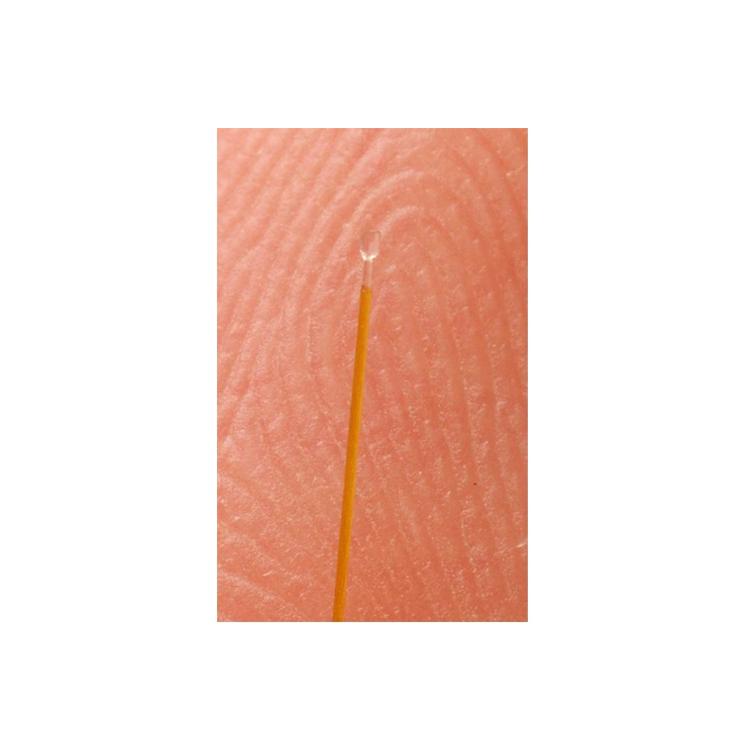

1. Introduction to Fiber Optic Pressure Sensor FOP-M260:
FOP-M260Fiber optic pressure sensorIt is a small, high-precision sensor designed for the medical field. It is completely immune to electromagnetic interference and is intrinsically safe for the human body.
2. Applications of Fiber Optic Pressure Sensor FOP-M260
Cardiology: Left ventricular pressure, arterial blood pressure
Pharmacology: Drug and fluid injection
Neurology: Intracranial pressure
Spine: Intervertebral disc pressure
Skeletal: Intramedullary pressure
Urology: Pancreatic/ureteral pressure
MRI RFI gating: Arterial blood pressure or left ventricular pressure waveform
Image gating
Respiratory/Pulmonary
Ophthalmology: Intraocular pressure
Gastroenterology
3. Parameters of Fiber Optic Pressure Sensor FOP-M260
| Pressure range | 300mmHg~300mmHg |
| Resolution | 0.1mmHg |
| System accuracy | ±3mmHg |
| Sensitivity thermal effect | ＜0.3mmHg/℃ |
| Overpressure | 4500mmHg |
| Wire sheath | Nylon sheath, outer diameter 0.9mm |
| Tip termination | Bare unprotected/with protection/gel-protected/custom |
| Standard sensor length | 2m |
| Connector | SCAI, SCAI is a SCA connector with smart chip communication calibration data that connects to the signal reading module. |
