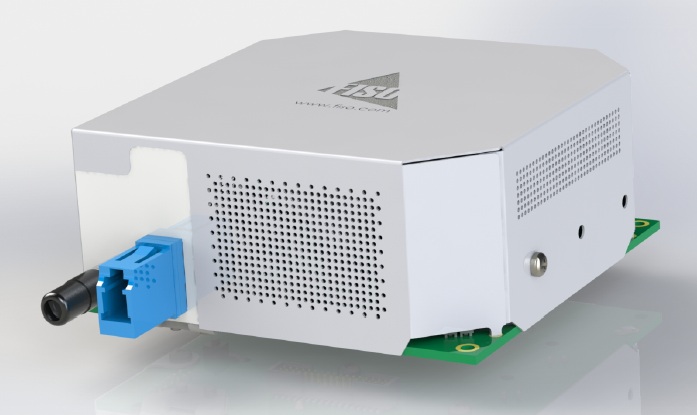

Canada FISO Medical Process Pressure Monitoring Signal Processing Module - skr-oem

Canada FISO Medical Process Pressure Monitoring Signal Processing Module skr-oem Description:
Development module, also known as "SKR-DEV", compatible with evolution software,The footprint, communication capability, and speed of SKR-DEV make it the most ideal tool for integrating ourfiber optic sensors into customer equipment.
The SKR-DEV kit includes the following components:
Power adapter and cable
USB interface cable,
BNC-SMA cable
User guide
Software drivers and manual (pdf) on CD.
Cleaning kit

Three-meter fiber optic extension cable

Canada FISO Medical Process Pressure Monitoring Signal Processing Module skr-oemMain Features:
USB communication
Full bandwidth via analog output connector,
LED technology, lifespan over 5000 hours, no performance degradation
Automatic atmospheric environment compensation

Canada FISO Medical Process Pressure Monitoring Signal Processing Module skr-oemApplications:

Cardiology: Left ventricular pressure, arterial blood pressure
Pharmacology: Drug and liquid injection
Neurology: Intracranial pressure
Spine: Intradiscal pressure
Bone: Intramedullary pressure
Urology: Pancreatic/ureteral pressure
MRI RFI gating: Arterial blood pressure or left ventricular pressure waveform
Image gating
Respiratory/Pulmonary
Ophthalmology: Intraocular pressure
Gastroenterology

Canada FISO Medical Process Pressure Monitoring Signal Processing Module skr-oemParameters:

Pressure range	-300mmHg~300mmHg
Resolution	0.1mmHg
System accuracy	±3mmHg
Sensitivity thermal effect	＜0.3mmHg/℃
Overpressure	＞4500mmHg
Wire sheath	Nylon sheath, outer diameter 0.9mm
Tip termination	Bare unprotected/protected/gel-protected/custom
Standard sensor length	2m
Connector	SCAI
