Product Introduction
Formaldehyde Sensor Formaldehyde Detection Module WZ-S Description:
The WZ-S formaldehyde detection module is a new masterpiece developed by UK formaldehyde detection expert Dart. It directly converts the formaldehyde content in the environment into a concentration value with standardized digital output, making it easy for customers to integrate. The WZ-S formaldehyde detection module undergoes strict factory calibration and can be directly applied in detection systems.
Formaldehyde Sensor Formaldehyde Detection Module WZ-S Applications:
Suitable for smart homes, portable instruments, wearable devices, air purifiers, fresh air systems, etc.
Formaldehyde Sensor Formaldehyde Detection Module WZ-S Features:
High Measurement Accuracy
Low Power Consumption
Fast Response Time
No Regular Calibration Required
Long Service Life
Stable and Reliable
Strong Anti-Interference Capability
Formaldehyde Sensor Formaldehyde Detection Module WZ-S Parameters:
| Detection Principle |
Fuel Cell |
| Detection Gas |
Formaldehyde |
| Detection Range |
(0~2)μL/L |
| Overload |
10μL/L |
| Supply Voltage |
(4.5~7)VDC |
| Response Time |
<40S |
| Recovery Time |
< 60S |
| Resolution |
0.01μL/L |
| Operating Temperature |
-20°C ~ 50°C |
| Operating Humidity |
10%-90%RH (Non-Condensing) |
| Storage Temperature |
(0~ 20)°C |
| Service Life |
5 Years (Normal Use) |
| Warranty Period |
12 Months |
| Weight |
4g |

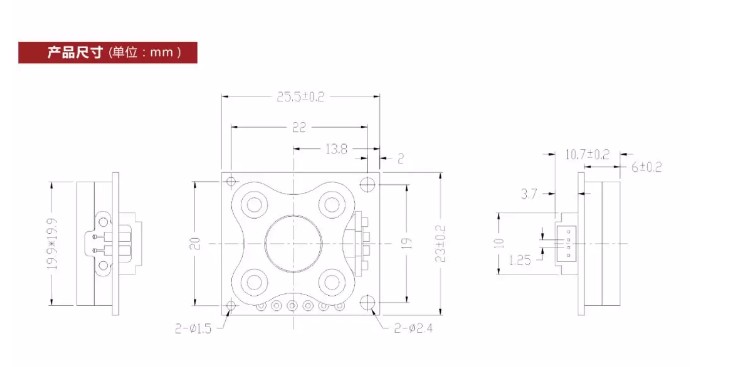

Formaldehyde Sensor Formaldehyde Detection Module WZ-S Dimensions:

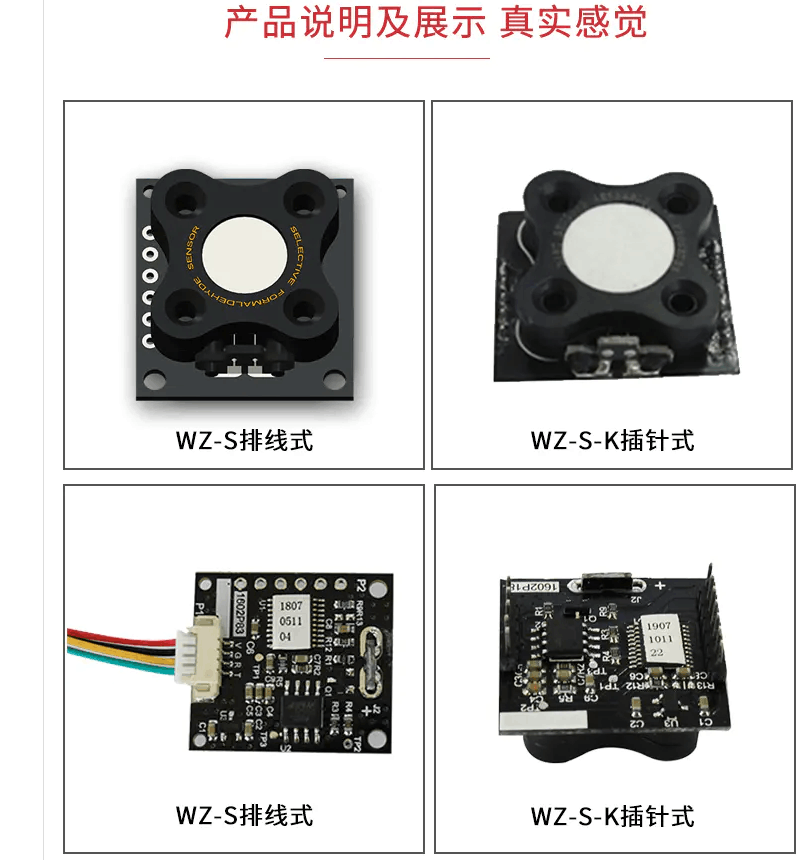

Formaldehyde Sensor Formaldehyde Detection Module WZ-SDifference between cable and pin connection methods:
