Product introduction
-

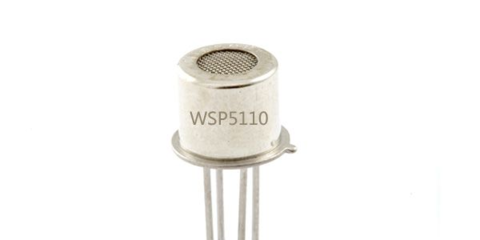

I.Freon sensorWSP5110 product description
-
The WSP5110 Freon gas sensing element uses advanced planar production technology, forming a heater and metal oxide semiconductor gas-sensitive material on a miniature Al2O3 ceramic substrate, with electrode leads extending out, encapsulated in a metal base and cap. When the target gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. A simple circuit can convert this change in conductivity into an output signal corresponding to the gas concentration.
-
-
II. Freon sensor WSP5110Sensor features
-
High sensitivity to gases such as Freon and benzene
Small component size
5V fixed voltage, low power consumption
Fast response and recovery characteristics
Simple drive circuit
Excellent stability and long service life
-
-
III. Freon sensor WSP5110Main applications
-
Used in household and environmental Freon detection gas devices, etc.
-
-
IV. Freon sensor WSP5110Technical specifications
| Product model |
WSP5110 |
||
| Product type |
Planar semiconductor gas sensing element |
||
| Standard package |
Metal |
||
| Detection gas |
Freon, benzene, alcohol, etc. |
||
| Detection concentration |
10-1000ppm |
||
| Standard circuit conditions |
Loop voltage |
Vc |
≤24V DC |
| Heating voltage |
VH |
5.0V±0.2V ACorDC |
|
| Load resistance |
RL |
Adjustable |
|
| Gas sensing element characteristics under standard test conditions |
Heating resistance |
RH |
90Ω±5Ω(Room temperature) |
| Heating power consumption |
PH |
≤280mW |
|
| Surface resistance of sensing body |
Rs |
30KΩ-200KΩ(in 100ppmFreon) |
|
| Sensitivity |
S |
Rs(in air)/Rs(100ppmFreon)≥3 |
|
| Concentration slope |
α |
≤0.65(R200ppm/R50ppmFreon) |
|
| Standard test conditions |
Temperature, humidity |
20℃±2℃；65%±5%RH |
|
| Standard test circuit |
Vc:5.0V±0.1V； VH: 5.0V±0.1V |
||
| Preheating time |
Not less than120hours |
||
