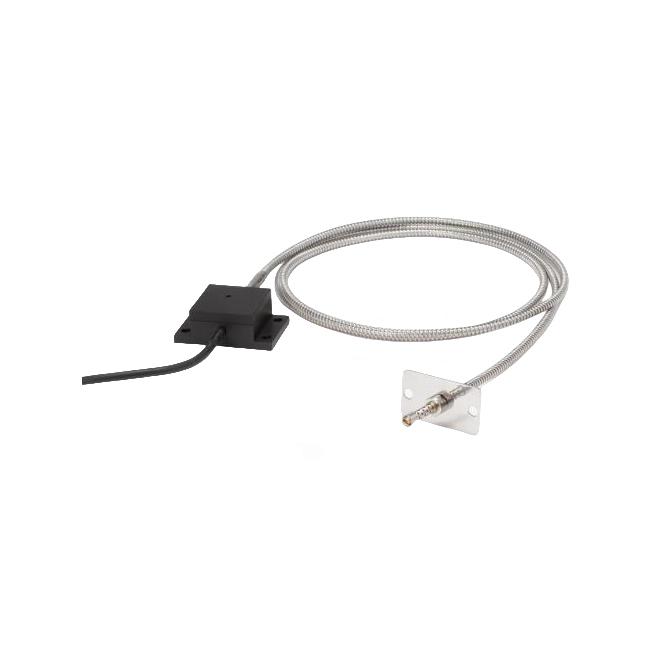

South Korea Genicom UV High-Temperature UV Probe - GUVS-T10EC-x1)LOHT
Features
•High-temperature environment (up to 250°C)
•Very flexible fiber optic (minimum R20)
•360° lateral light detection
•UVA / B / C detection
•Optional output type (current/voltage)
•Optional operating voltage (5V / 9~24V)
Product Introduction
South Korea Genicom UV High-Temperature UV Probe Features:
•High-temperature environment (up to 250°C)
•Very flexible fiber optic (minimum R20)
•360° lateral light detection
•UVA / B / C detection
•Optional output type (current/voltage)
•Optional operating voltage (5V / 9~24V)
South Korea Genicom UV High-Temperature UV Probe Parameters:
| Part Name |
Head Part |
Sensor Part |
Optical Fiber |
|
Image |
|
|
|
| Dimension |
Body Φ6, Connector Φ8 L26 ㎜ |
57 * 37 * 21 ㎜ |
Cable : Φ5.0 Core : 1.5 ㎜ |
| Material |
SUS 316-L |
Al-60 / Black anodizing |
SUS 304 casing |
| OperatingTemperature |
Max. 300 ℃ |
-30~85 ℃ |
- 30~250 ℃ |
| Cable Length |
- |
Strandard : 5 m (the other length optional) |
Strandard : 1.5 m (the other length optional) |
| Radius ofCulvature |
- |
- |
Very flexible (Min. R20) |
| Output type |
- |
Voltage or Current |
- |
| Remarks |
Includes M8, M4 nuts and mounting plate |
Includes cable |
SMA905 connector / M4 screw |
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
| Supply Voltage |
Vcc |
|
5 |
|
VDC |
3 |
|
| 9 |
|
24 |
3 /I8 |
||||
| Supply Current |
IQ |
3.3 |
|
4 |
㎃ |
|
|
| Spectral Detection Range |
λ |
220 |
|
390 |
㎚ |
|
|
| Output |
Voltage |
Vout |
0 |
|
5 |
V |
3 |
| Current |
Iout |
4 |
|
20 |
㎃ |
I8 |
|
| Detection Power Range |
P |
0 |
|
100 |
㎽/㎠ |
* Standard |
|
| Response Time |
T |
|
10 |
|
㎳ |
|
|
