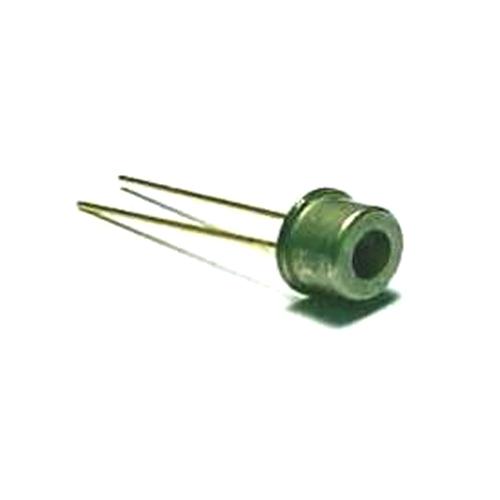

South Korea GENICOM UV Sensor - GUVB-T11GD-L
Features:
Chip size 0.4mm, TO 46 package
InGaN material
Schottky photodiode
Photovoltaic mode operation
High response, low dark current
Spectral detection range: 240-395nm
Active area: 0.076mm2
Responsivity: 0.18A/W
Dark current: 1nA
Photocurrent: 181nA UVA lamp, 1mW/cm2
Product Introduction
1. South Korea GENICOM UVBUV SensorsGUVB-T11GD-L Description:
UVB UV sensorGUVB-T11GD-L, with high sensitivity and good solar blindness, peak response at 300nm band, TO-46 metal housing package, large photosensitive chip. Mainly used for UV index monitoring, UV-B lamp monitoring, and medical applications.
2. South Korea GENICOM UVB UV Sensor GUVB-T11GD-L Features:
- Chip size 1.4mm, TO 46 package
- AlGaN material
- Schottky photodiode
- Photovoltaic mode operation
- Good visible blindness
- High response, low dark current
3. South Korea GENICOM UVB UV Sensor GUVB-T11GD-L Applications:
- UV-B LED monitoring
- UV-B lamp monitoring
4. South Korea GENICOM UVB UV Sensor GUVB-T11GD-L Specifications:
| Parameter | Remarks | |
| Operating Temperature | -30~85℃ | |
| Reverse Voltage | MAX 2V | |
| Soldering Temperature | 260℃ | Within 10 seconds |
| Responsivity | 0.13A/W | λ=300nm |
| Wavelength Range | 220-320nm | 10&of Rp |
| Photocurrent | 1.5uA | UVB lamp, 1mW/cm² |
| Detection Power Range | 0.01uw/cm²~100mw/cm² | |
| Photosensitive Area | 1.536mm² |
UV sensors can be widely used in: UV intensity detection and control, UV index detection. Outdoor UV index detection devices, etc. They can also be used in UV disinfection and UV curing to monitor UV intensity. UV flame detectors, etc.
