Product Introduction
1. UV Sensor (UV sensor) GUVC-S10GD Product Description:

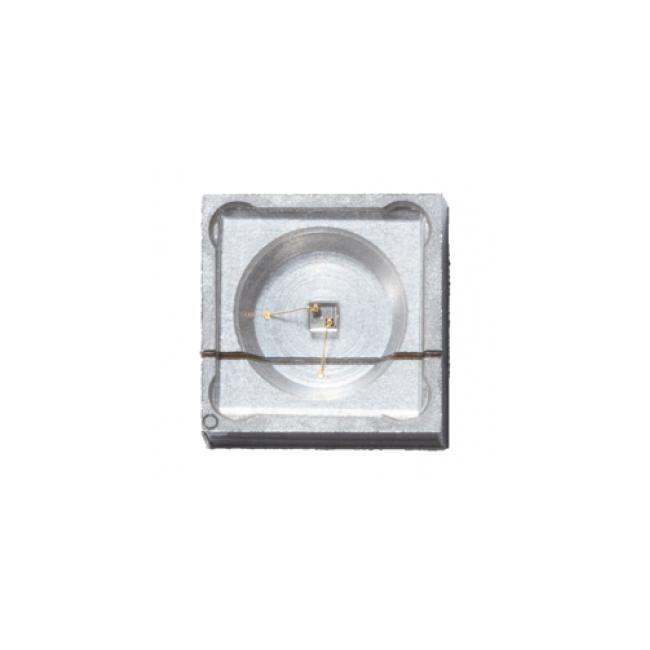

The UV sensor (UV sensor) GUVC-S10GD mainly detects the wavelength range at 254nm. The sensor is packaged in an SMD3535 metal (Al) shell. The photosensitive chip area is 0.076mm². The output of the UV sensor is mainly related to responsivity, sensor photosensitive area, and light intensity. This UV sensor is suitable for disinfection equipment or products with strict size requirements.
2. UV Sensor (UV sensor) GUVC-S10GD Product Features:
- Chip size 0.4mm, SMD3535 package
- Aluminum Gallium Nitride material
- Schottky photodiode
- Photovoltaic mode operation
- Good solar blindness
3. UV Sensor (UV sensor) GUVC-S10GD Applications:
- Pure UV-C monitoring
- Germicidal lamp monitoring
- UV disinfection monitoring
4. UV Sensor (UV sensor) GUVC-S10GD Parameters:
| Parameter | Remarks | |
| Operating Temperature | -30~85℃ | |
| Reverse Voltage | MAX 2V | |
| Soldering Temperature | 260℃ | Within 10S |
| Responsivity | 0.07A/W | λ=254nm，Vr=0V |
| Wavelength Range | 220-280nm | 10&of Rp |
| Photocurrent | 39nA | UVC lamp, 1mW/cm² |
| Detection Power Range | 0.1uw/cm²~100mw/cm² | |
| Photosensitive Area | 0.076mm² |
