Product Introduction
Compact Size
Sterilization Lamp Monitoring

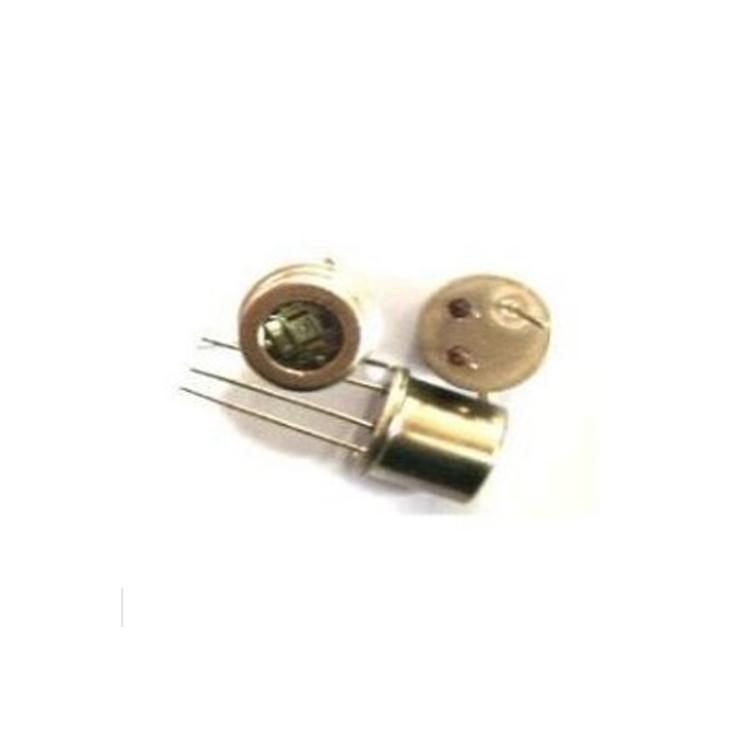

Korea GENICOM UV SensorGUVCL-T21GH Parameters:
Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
Test Conditions |
| Storage Temperature |
Tst |
-40 |
90 |
℃ |
|
| Operating Temperature |
Top |
-30 |
85 |
℃ |
|
| Supply Voltage |
Vr, max. |
|
5.5 |
v |
|
| Soldering Temperature |
Tsol |
260 |
|
℃ |
Within 10 seconds |
Characteristics (@ 25℃)
|
|
Symbol |
Min |
typ |
Max |
Unit |
Test Conditions |
| Supply Voltage |
Vcc |
1.8 |
|
5.5 |
v |
DC |
| Supply Current |
IQ |
|
50 |
|
㎁ |
|
| Responsivity |
Rp |
|
0.7 |
|
㎷/㎻ |
@270㎚ |
| Spectral Detection Range |
λ |
220 |
|
320 |
㎚ |
10% of R |
| Output Voltage |
Vout |
|
0.83 |
|
v |
UVC LED, 1㎽/㎠ |
| Offset Voltage |
Voff |
|
0.01 |
|
v |
|
| Detection Power Range |
p |
0 |
|
6.0 |
㎽/㎠ |
Vcc=5V |
| Rise Time |
Tr |
|
3 |
|
ms |
|
