Product Introduction

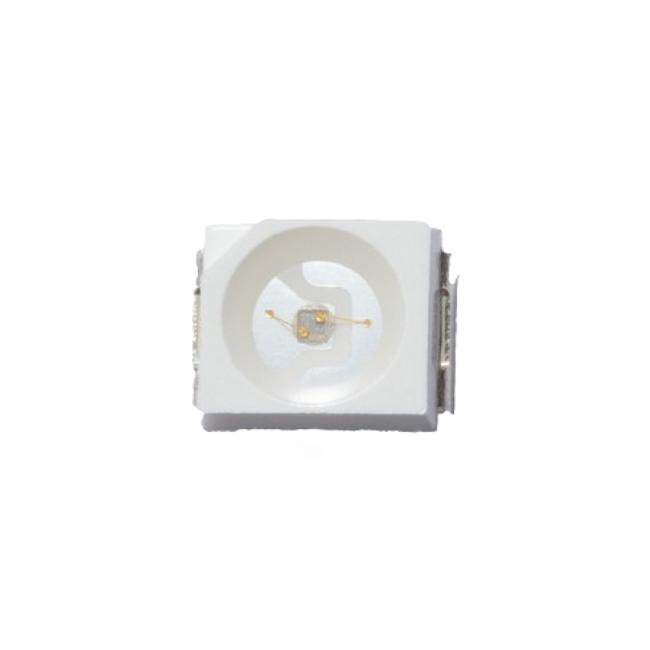

1. Description of GVBL-S12SD Visible Light Sensor UV Sensor:
Visible light sensor GVBL-S12SD chip less than 0.4mm, SMD3528 package, InGaN material, PN-type photodiode, photovoltaic mode operation
High response, low dark current. Application areas: UV LED monitoring (385, 405nm, etc.), blue LED monitoring, UVA band UV lamp monitoring, UV curing.
2. Characteristics of GVBL-S12SD Visible Light Sensor UV Sensor:
Chip less than 0.4mm, SMD3528 package
InGaN material
PN-type photodiode
Photovoltaic mode operation
High response, low dark current
Spectral detection range: 345-450nm
Responsivity: 0.68A/W
Dark current: 1nA
Photocurrent: 790nA LED (405nm), 1mW/cm2
3. Application areas of GVBL-S12SD Visible Light Sensor UV Sensor:
UV LED monitoring (385, 405nm, etc.)
Blue LED monitoring
UVA band UV lamp monitoring
UV curing
Resin curing
