Geothermal Water Level Transmitter - CS-PT420

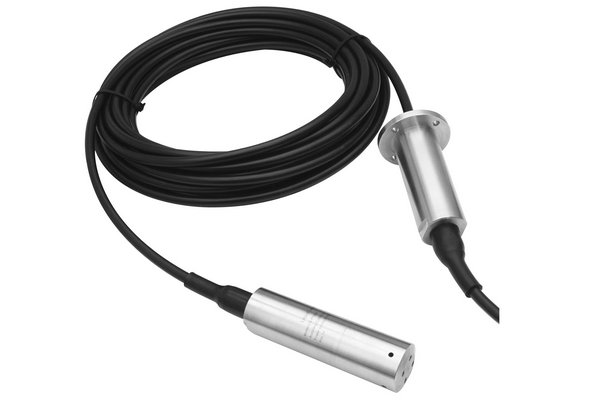

 1. Geothermal Water Level Transmitter CS-PT420 Product Description

The CS-PT420 series pressure transmitter is a high-reliability, high-stability, high-precision high-temperature-resistant level transmitter, mainly used for measuring the level of high-temperature fluids.

This product adopts a 1Cr18Ni9Ti stainless steel structure, with a diffusion oil-filled pressure core from an overseas brand, and a dedicated amplification and V/I transmitter conversion circuit, allowing convenient calibration of zero and full scale.

It can be configured with wear-resistant, oil-resistant, acid-alkali-resistant, high-strength special breathable cables according to different application sites.

Certified with intrinsic safety explosion-proof, isolated explosion-proof, and CE certification.

Two-wire loop output leads are non-polar, and three-wire voltage output type is AC/DC dual-use.

2. Geothermal Water Level Transmitter CS-PT420 Product Features

±0.25%, ±0.5% F.S accuracy; OEM available; diffusion silicon oil-filled core; multiple pressure ranges and signal outputs; immersion and threaded mounting; temperature up to 120°C; non-polar two-wire output, intrinsic safety, explosion-proof, CE certified; strong electromagnetic interference resistance.

3. Geothermal Water Level Transmitter CS-PT420Application Fields

Applications: geothermal water measurement, geothermal water extraction, cooling water monitoring in thermal power plants, thermal boilers, hydrological monitoring, heating boilers, generator sets, hydroelectric power.

4. Geothermal Water Level Transmitter CS-PT420 Technical Parameters

General	Value			Remarks
Pressure Range	All pressure ranges between 0~1....500mH2O			1mH2O≈9.81kPa
Overload Pressure	1.5 times rated pressure
Burst Pressure	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S (for higher accuracy, please choose MARS series)
Stability	Typical 0.15%F.S, max: 0.25%F.S
Operating Temperature	-20°C~100°C (customizable -20°C~120°C)
Compensated Temperature	-10°C~70°C (customizable full temperature range compensation products)
Media Compatibility	All corrosive media compatible with 1Cr18Ni9Ti and 316L
Electrical Performance	Two-wire	Three-wire
Output Signal	4~20mA	0/1~5V	0~10V
Power Supply	10~30Vdc	8~24Vdc/ac	11~30Vdc/ac	Vdc/ac means AC/DC dual-use
Load Resistance	(U-10)/0.02(Ω)	＞100kΩ
Insulation	＞100M Ω@50V
Electrical Strength	500V@60 second
Electrical Connection	Five-level sealing, protection IP68
Pressure Connection	T=immersion type, F=split type
Response Time	10ms
Vibration/Shock	10g/5~2000Hz, axes X/Y/Z 20g sine 11ms
Certifications	Intrinsic safety explosion-proof, isolated explosion-proof certification, EU electrical safety standard CE
Electromagnetic Compatibility	Electromagnetic emission: EN50081-1/-2; Electromagnetic immunity: EN50082-2
Lightning Protection	Air conduction withstand voltage 8000V, housing and cable conduction withstand voltage 4000V			Also customizable according to user requirements
