Product Introduction

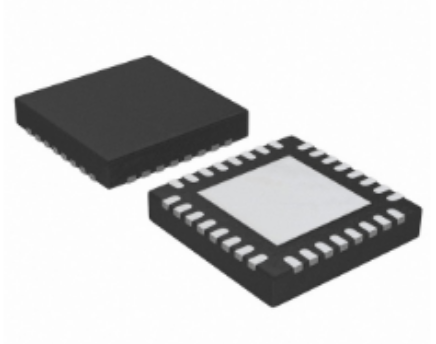

Capacitive Touch Chip- GTX312L is a GreenTouch 3LPTMOne of the capacitive touch products in the sensor series. EspeciallyGTX312LCan perform capacitive sensing with more than 12 channels running on the GreenTouch 3LPTMEngine running. Due to GreenTouch 3LPTMThe low-power engine allows various battery-powered applications to increase product usage time. Also, based on the existing GreenTouch3TM engine technology, reliability can be guaranteed against various noises and environmental changes. Internal control registers can be accessed via the I2C read/write interface.
GTX312L can operate over a wide supply voltage range from 1.8V to 5.5V. The CTRL pin of GTX312L provides a switchable chip ID for I2C bus operation of two chips in parallel on the same bus.
I. Features of Capacitive Touch Chip - GTX312L:
12-channel upper limit sensing input
Embedded GreenTouch3LPTMEngine
- Analog compensation circuit
- Embedded digital noise filter
- Smart sensitivity calibration
- Low-power enhancer
Supports I2C interface
Provides interrupt function
Provides slide mode
Provides "register write lock" function
Wide supply voltage range: 1.8V ~ 5.5V
Package type
- QFN-32L (5.00 x5.00x0.75, e = 0.50)
Passed lead-free certification
II. Application of Capacitive Touch Chip - GTX312L：
Multi-key applications - door locks, remote controls, etc.
Portable electronic products - mobile phones, MP3, PMP, PDA, navigation, digital cameras, camcorders, etc.
Multimedia devices - TVs, DVD players, Blu-ray players, digital photo frames, home theater systems, etc.
