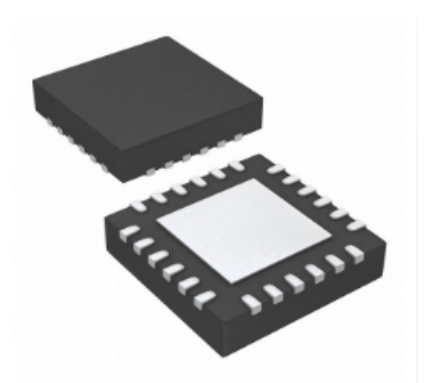

Korea GreenChip Capacitive Touch Chip - GTX314L

Capacitive Touch Chip - GTX314L is GreenTouch 3LP^TMOne of the capacitive touch products in the sensor series. In particular, GTX314L can perform capacitance detection with 14 channels under GreenTouch 3LP^TMEngine running. Due to GreenTouch 3LP^TMLow-power engine, various battery-powered applications can increase product usage time. Also, based on the existing GreenTouch3TM engine technology, reliability can be guaranteed against various noises and environmental changes. Internal control registers can be accessed using the I2C read/write interface. GTX314L can be applied to a wide supply voltage range of 1.8V to 5.5V. The CTRL pin of GTX314L provides a switchable chip ID for parallel operation of two chips on the same I2C bus.

1. Characteristics of Capacitive Touch Chip - GTX314L:

14-channel cap. sensing input

Embedded GreenTouch3LP^TMEngine

- Analog compensation circuit

- Embedded digital noise filter

- Smart sensitivity calibration

- Low-power enhancer

Supports I2C interface

Provides interrupt function

Provides slide mode

Provides "register write lock" function

Wide supply voltage range: 1.8V ~ 5.5V

Package type

- QFN-24L (4.00 x4.00x0.75, e = 0.50)

Passed lead-free certification

TwoApplication of Capacitive Touch Chip - GTX314L：

Multi-key applications - door locks, remote controls, etc.

Portable electronic products - mobile phones, MP3, PMP, PDA, navigation, digital cameras, camcorders, etc.

Multimedia devices - TVs, DVD players, Blu-ray players, digital photo frames, home theatersetc.
