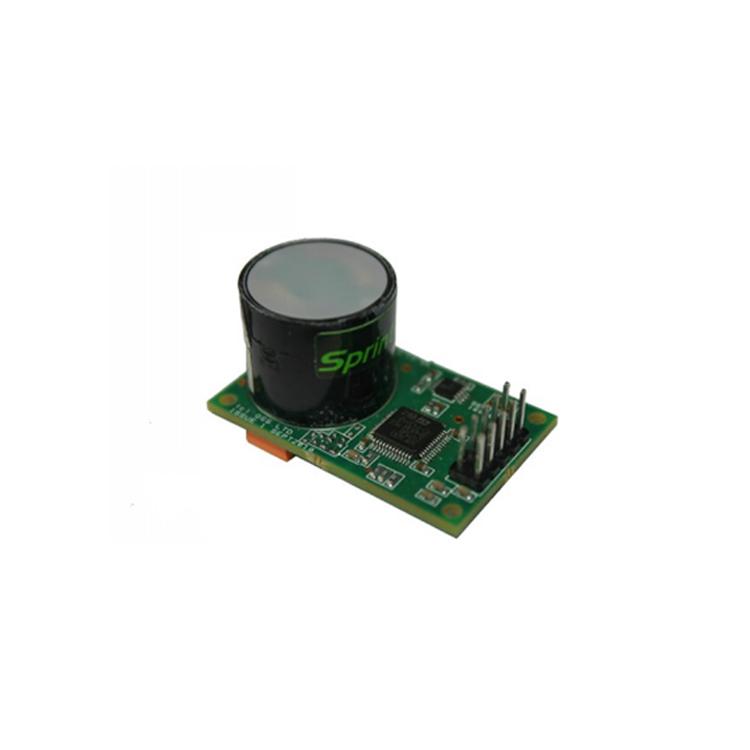

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable Device SprintIR-WX

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable Device - SprintIR-WX

High-Speed Sensing - 20 Hz
Low Power / Energy Consumption - 35mW
Measures CO2 concentrations up to 100%

Product Model: SprintIR-WX

Inquiry

shareShare

Product Introduction

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable Device SprintIR-WX Description:

SprintIR®-W is a very fast response CO2 sensor. It can measure CO2 concentrations up to 100% and comes with a flow-through adapter.

The sensor takes 20 readings per second, making it suitable for applications requiring high-speed sensing and measurement of rapidly changing CO2 concentrations.

It has low power requirements, making it an excellent choice for battery-powered systems, including portable, wearable, and self-powered applications.

SprintIR®-W is based on our unique LED technology platform and optical design. It is this solid-state technology that enables the fastest speed, lowest power consumption, longest lifespan, and highest durability among competitors.

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable DeviceSprintIR-WXAdvantages:

• Fast measurement - 20 measurements per second

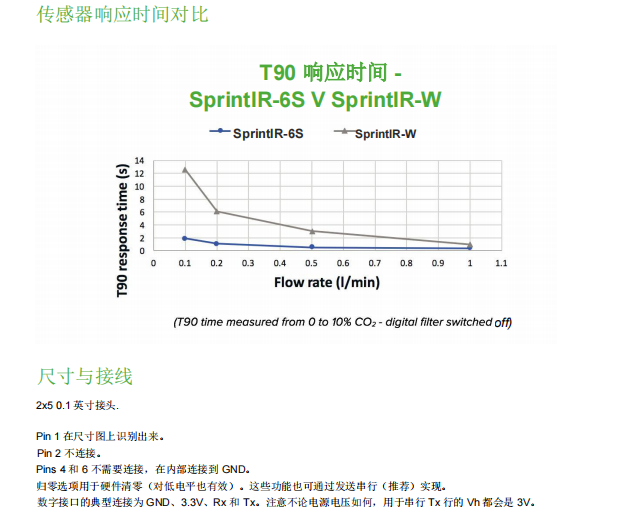

• Extremely fast response (see chart below)

• Suitable for low-power and battery-operated applications

• Suitable for wireless, portable, wearable, and self-powered systems

• Integrates with wireless IoT networks such as ZigBee, WiFi,

LoRa, Bluetooth, SigFox, and EnOcean

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable DeviceSprintIR-WXFeatures:

• High-speed sensing - 20 Hz

• Low power / energy consumption - 35mW

• Measures CO2 concentrations up to 100%

• Solid-state - no moving parts, no heating wire

• Resistant to vibration and shock

• No heating

• Digital (UART) output

• RoHS certified

• Made in the UK

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable DeviceSprintIR-WXApplications:

SprintIR®-W can be used to measure concentration ranges from 0-5%, 0-20%, to 0-100%.

The sensor meets applications requiring high-speed sensing and capturing rapidly changing CO2 concentrations, including breath analysis, capnography, metabolic assessment, and other real-time CO2 monitoring applications.

The sensor is suitable for battery applications requiring low power, including IoT applications such as wearable devices.

SprintIR®-W CO2 sensor has been successfully applied in the market in:

• Healthcare

• Food packaging

• Transportation

• Academic research

UK GSS High-Speed Response CO2 Sensor Battery Application Low Power IoT Wearable DeviceSprintIR-WX Parameters:

General Performance
Start-up Time	<30 seconds
Operating Conditions - Temperature	0°C ~ 50°C (standard) -25°C ~ 55°C (extended range)
Operating Conditions - Humidity	0 ~ 95% RH, non-condensing
Recommended Storage Temperature	-30°C ~ +70°C
CO2 Measurement
Sensing Method	Solid-state non-dispersive infrared (NDIR) absorption Patented solid-state LED and detector Patented gold-plated optics
Sampling Method	Diffusion
Range	0-5% 0-20% 0-60% 0-100%
Accuracy	± (70ppm + 5% of reading) (100% range ± (300ppm + 5% of reading)
Measurement Noise	<10% of reading, without digital filtering
Pressure Dependence	0.15% of reading per millibar under normal atmospheric conditions
Operating Pressure Range	500mbar ~ 10 bar 500mbar ~ 2 bar with flow-through adapter
Response Time (to step change in gas concentration)	Flow rate dependent
Update Rate	20 Hz
Electrical
Power Input	3.25 ~ 5.5V. (3.3V recommended) Peak current 100mA Average current <15mA
Power Consumption	35 mW

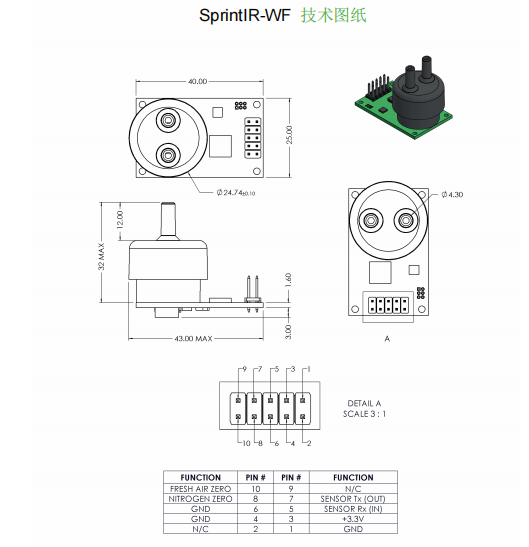

Connector	2x5 2.54mm connector
Communication	UART
Warranty
Sensor Warranty	1 year
