Product Introduction

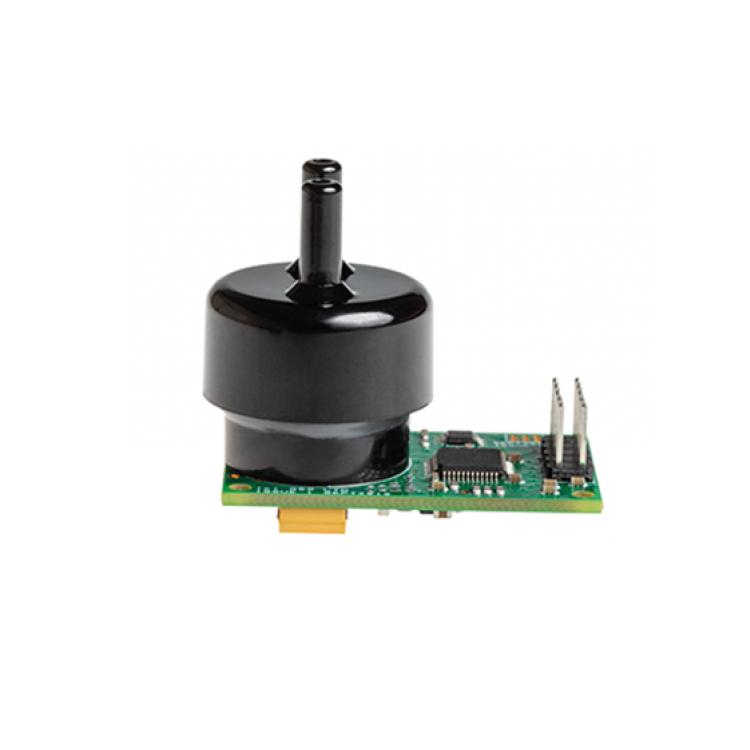

1. UK GSS High-Speed Response Infrared CO2 Sensor (NDIR CO2 Sensor)SprintIR-WFProduct Description:
SprintIR is a high-speed responseinfrared CO2 sensor（20Hz）， infraredCO2 sensorSprintIRSuitable for fields that require capturing rapid changes in CO2 concentration, such as metabolic assessment and ventilators, and can also be used in industrial fields.
2. UK GSS High-Speed Response Infrared CO2 Sensor (NDIR CO2 Sensor)SprintIR-WFProduct Features:
High-speed detection (20Hz)
Measurement range from 0 to 100%
Supply voltage 3.3V
Low power consumption 35mW
Ventilation duct optional
3. UK GSS High-Speed Response Infrared CO2 Sensor (NDIR CO2 Sensor)SprintIR-WFProduct Parameters:
| Warm-up time | <1 minute |
| Operating environment | 0°C to 50°C (standard), -25°C to 55°C (extended range), 0 to 95%RH, non-condensing |
| Storage temperature | -30℃~+70℃ |
| Sensing method | Non-dispersive infrared absorption technology |
| |
Gold-plated optical path patented technology |
| |
All-solid-state light source and detector patented technology |
| Sampling method | Gas diffusion or pump-in type |
| Measurement range | 0-5%， 0-20%， 0-60%， 0-100% |
| Accuracy | ±70ppm or ±5% of reading, whichever is greater. Non-linearity <1%FS |
| Operating pressure range | 950mbar to 1050mbar |
| Response time | 10 seconds to 3 minutes (user configurable), two readings per second |
| Power input | 3.25V to 5V (3.3V recommended) |
| Peak current | 100mA, average current <15mA |
| Power consumption | 35mW |
