Product Introduction

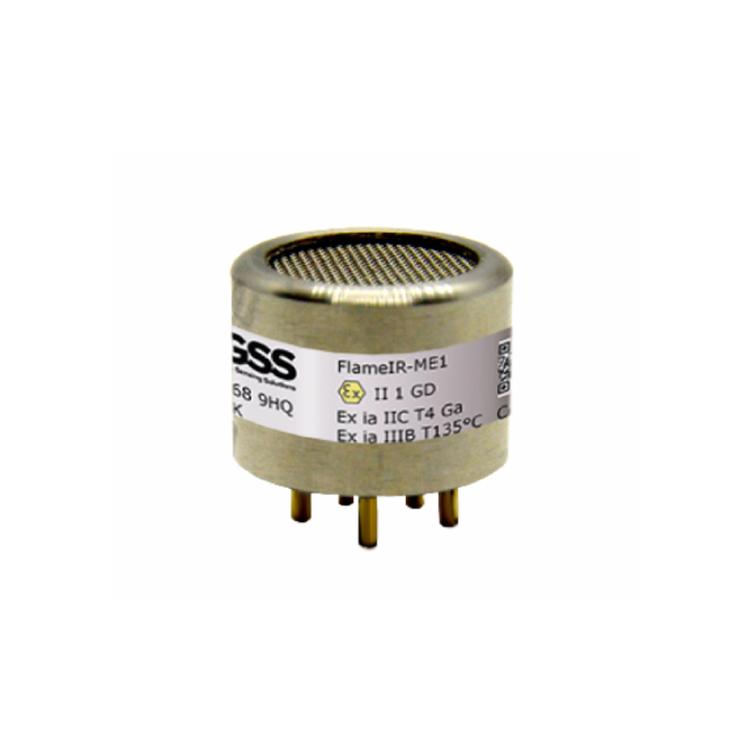

UK GSS Methane Sensor CH4 Sensor FlameIR-ME1 Description:
FlameIR®-ME1 calibrated for concentrations up to 0-5% methane (100% LEL)
FlameIR®-ME1 consumes an average of ~3.6mW (lower with shortened sampling periods), making it compatible with battery-powered or wearable applications
UK GSS Methane Sensor CH4 Sensor FlameIR-ME1 Features:
Solid-state NDIR LED optical technology
Typical measurement accuracy of 0.01%
Ultra-low power consumption, typically less than 5mW average
High pressure compensation
Analog or digital CH4 measurement
I²C or UART digital interface
Built-in zero tracking and auto-calibration
Real-time temperature correction
UK GSS Methane Sensor CH4 Sensor FlameIR-ME1 Applications:
Industrial Safety:
Any industry using hydrocarbons as part of its process
Mining
Construction:
Gas Distribution:
Unattended pollution monitors
Water Industry:
Wastewater treatment operations
Transportation:
Cargo monitoring
Environment:
Landfill monitoring

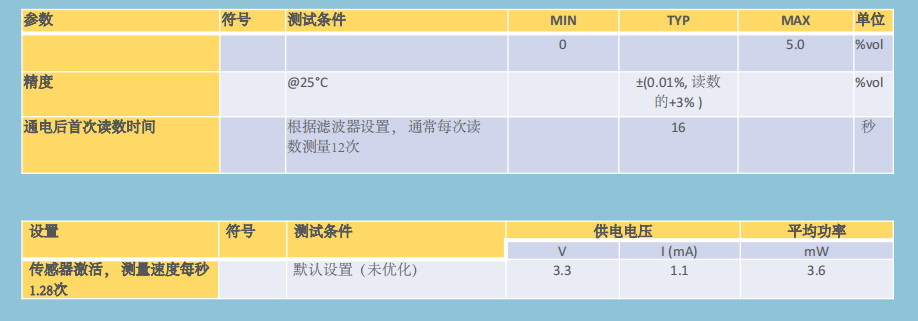

UK GSS Methane Sensor CH4 Sensor FlameIR-ME1 Parameters:

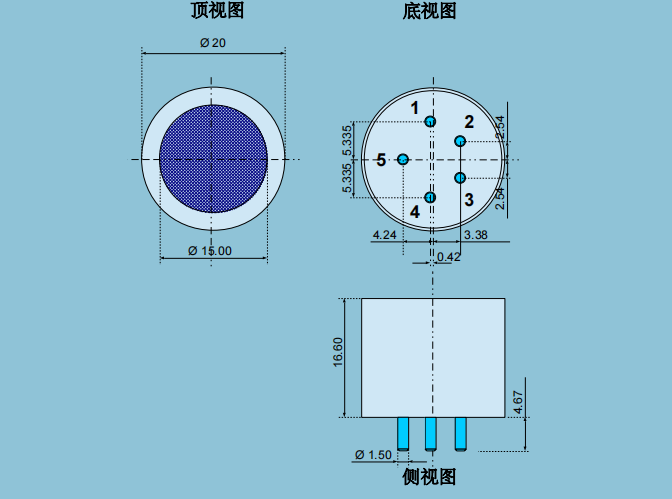

UK GSS Methane Sensor CH4 Sensor FlameIR-ME1 Dimensions:
