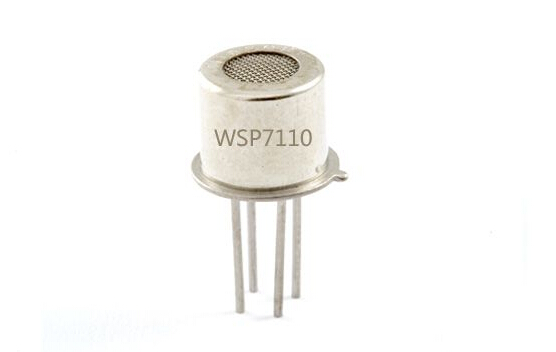

Hydrogen Sulfide Gas Sensor (H2S Gas Sensor) WSP7110 Product Description
-
The WSP7110 hydrogen sulfide gas sensing element uses advanced planar production technology, forming a heater and metal oxide semiconductor gas sensing material on a miniature Al2O3 ceramic substrate, with electrode leads extending out, packaged in a metal base and cap. When the detected gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. A simple circuit can convert this change in conductivity into an output signal corresponding to the gas concentration.
-
Hydrogen Sulfide Gas Sensor (H2S Gas Sensor) WSP7110Sensor Features
-
High sensitivity to hydrogen sulfide gas
Small element size
5V constant voltage, low power consumption
Fast response and recovery characteristics
Simple drive circuit
Excellent stability and long service life
-
Hydrogen Sulfide Gas Sensor (H2S Gas Sensor) WSP7110Main Applications
-
Used in household and environmental freon detection gas devices, etc.
-
Hydrogen Sulfide Gas Sensor (H2S Gas Sensor) WSP7110Technical Specifications
| Product Model |
WSP7110 |
||
| Product Type |
Planar semiconductor gas sensing element |
||
| Standard Package |
Metal |
||
| Detection Gas |
Hydrogen sulfide, acetylene, benzene, etc. |
||
| Detection Concentration |
1-50ppm |
||
| Standard Circuit Conditions |
Loop Voltage |
Vc |
≤24V DC |
| Heating Voltage |
VH |
5.0V±0.2V ACorDC |
|
| Load Resistance |
RL |
Adjustable |
|
| Gas Sensing Element Characteristics under Standard Test Conditions |
Heating Resistance |
RH |
90Ω±5Ω(Room Temperature) |
| Heating Power Consumption |
PH |
≤300mW |
|
| Surface Resistance of Sensing Body |
Rs |
1KΩ-100KΩ(in 5ppmHydrogen Sulfide) |
|
| Sensitivity |
S |
Rs(in air)/Rs(5ppmHydrogen Sulfide)≥3 |
|
| Concentration Slope |
α |
≤0.65(R200ppm/R50ppmHydrogen Sulfide) |
|
| Standard Test Conditions |
Temperature, Humidity |
20℃±2℃；65%±5%RH |
|
| Standard Test Circuit |
Vc:5.0V±0.1V； VH: 5.0V±0.1V |
||
| Preheating Time |
Not Less Than48Hours |
||
