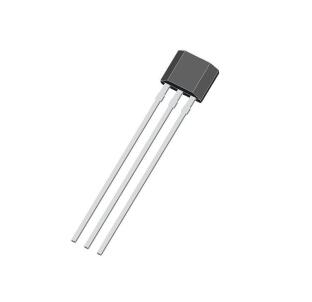

Hall Sensor Chip - MS40S
Small package size
Bipolar magnetic field sensing with high sensitivity, making it very suitable for products such as speed sensing and rotation speed detection
Integrated reverse voltage protection
Current sink output mode
Wide temperature range -40 to 120 degrees
Frequency range 0 to 100KHz
Product Introduction
Hall Sensor Chip - MS40It is a bipolar Hall switch circuit with fast response speed, high sensitivity, andHas a high operating temperature range, high reliability, and reverse voltage protection. DCVoltage operating range from4.5Vto24V. It internally integrates a Hall element, regulated by a voltageregulator, hysteresis comparator, and output stage circuit. This product adoptsrelativelyNew technologytechnology, especially suitable for rotation speed detection, motor control, etc.
I. Characteristics of Hall Sensor Chip - MS40S:
Small package sizeBipolar magnetic field sensing with high sensitivity, making it very suitable for products such as speed sensing and rotation speed detection
Integrated reverse voltage protection
Current sink output mode
Wide temperature range -40 to 120 degrees
Frequency range 0 to 100KHz
II. Applications of Hall Sensor Chip - MS40S：
