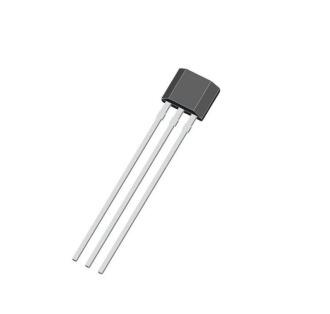

Hall sensor chip - MS413S

Hall sensor chip - MS413Contains a thermally balanced integrated circuit over the entire temperature range, with negative temperature compensation.The characteristic provides a better match with the negative temperature coefficient of low-cost magnetic fields.relativelyGood match. The internal design includes a bandgap voltage.Voltage, forMS413At3-40VDCProvides particularly stable operation within the power supply voltage range.Characteristic.MS413Capable of continuous output30mACurrent,relativelyMaximum absolute current50mA。

1. Characteristics of Hall sensor chip MS413S:

3-40VDC power supply
Current sink output mode
Quadrature Hall Design Eliminates Mechanical Stress Effects
Magnetic characteristic temperature compensation.
Customizable special actuation and release points.
Bipolar Hall
Very high output current capability——relativelyMaximum absolute current 50mA
Operating temperature range: -40-120℃

2. Applications of Hall sensor chip MS413S：
