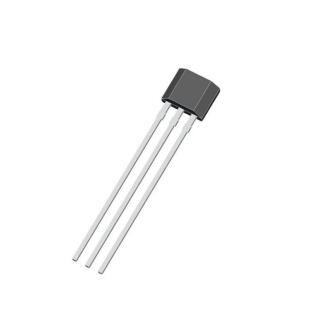

Hall Sensor Chip - MS443S

Hall Sensor Chip - MS443Contains a thermally balanced integrated circuit over the entire temperature range, with negative temperature compensation.The characteristic optimally matches the negative temperature coefficient of low-cost magnetic fields. Internally designed with bandgapVoltage, forMS443At3-40VDCProvides particularly stable operation within the power supply voltage range.Characteristic.MS443Capable of continuous output30mA Current,relativelyMaximum absolute current50mA。

I. Characteristics of Hall Sensor Chip MS443S:

3-40VDC supply, current sink output mode
Square Hall design eliminates mechanical stress effects
Magnetic characteristics temperature compensation
Customizable special operating and release points
Unipolar Hall
Very high output current capability,relativelyLarge absolute current 50mA
Operating temperature range: -40-120℃

II. Applications of Hall Sensor Chip MS443S：
