Hall Speed and Direction Sensor - AH710

The AH710 is a series of speed and direction sensors with 2 built-in Hall effect elements. Each element provides an independent digital signal output for speed and direction signal processing.

The chip internally includes two Hall sensing elements spaced 1.63mm apart, including a Hall voltage generator, a voltage regulator for 3.8-30V supply voltage, temperature compensation circuit, small-signal amplifier, dynamic offset cancellation system Hall sensor, Schmitt trigger, and open-drain output. It is convenient for processing speed and direction signals.

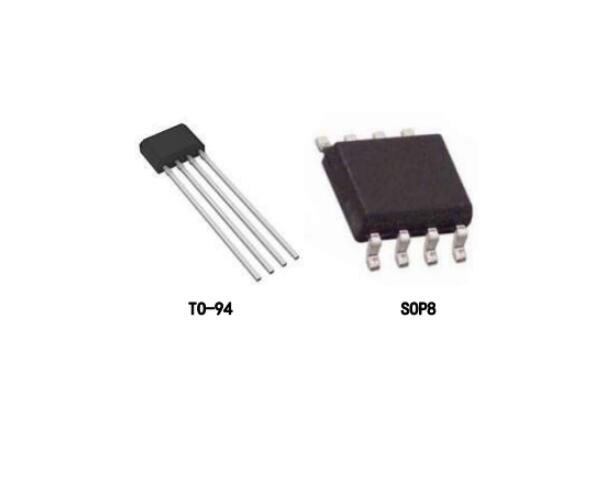

The AH710 is available in TO94 and SOP8 packages and complies with RoHS standards.

I.Hall Speed and Direction Sensor -Features of AH710:

Hall Element Spacing 1.63mm
Magnetic Type: Bipolar Switch
Operating Voltage: 3.8V ~ 30V
Reverse Voltage Protection
ESD Performance up to ±6kV
Operating Temperature Range: -40°C ~ 150°C
Sensitivity: BOP=40Gs, BRP=-40Gs
High Anti-Static Level
2011/65/EU

II.Hall Speed and Direction Sensor -Applications of AH710:

Speed Detection

Direction Detection

Magnetic Encoders
