Hall Speed and Direction Sensor - AH711
Hall Element Spacing: 1.63mm
Magnetic Type: Bipolar Switch
Operating Voltage: 3.8V ~ 30V
Reverse Voltage Protection
ESD Performance up to ±6kV
Operating Temperature Range: -40°C ~ 150°C
Sensitivity: BOP=75Gs, BRP=-75Gs
High Anti-Static Level
2011/65/EU
Product Introduction
The AH711 is a series of speed and direction sensors with two built-in Hall effect elements. Each element provides an independent digital signal output for speed and direction signal processing.
The chip internally includes two Hall sensing elements spaced 1.63mm apart, including a Hall voltage generator, a voltage regulator for a supply voltage of 3.8 to 30V, temperature compensation circuits, small-signal amplifiers, a dynamic offset cancellation system Hall sensor, Schmitt triggers, and open-drain outputs. It is convenient for processing speed and direction signals.

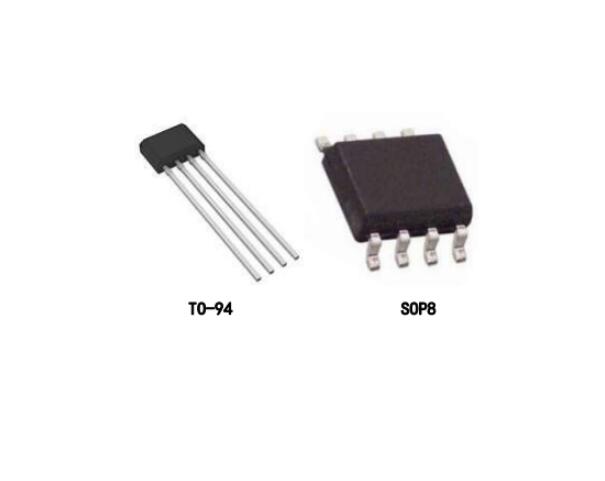

The AH711 is available in TO94 and SOP8 packages and complies with RoHS standards.
1.Hall Speed and Direction Sensor -Features of AH711:
Hall Element Spacing: 1.63mm
Magnetic Type: Bipolar Switch
Operating Voltage: 3.8V ~ 30V
Reverse Voltage Protection
ESD Performance up to ±6kV
Operating Temperature Range: -40°C ~ 150°C
Sensitivity: BOP=75Gs, BRP=-75Gs
High Anti-Static Level
2011/65/EU
2.Hall Speed and Direction Sensor -Applications of AH711:
Speed Detection
Direction Detection
Magnetic Encoders
