Product introduction

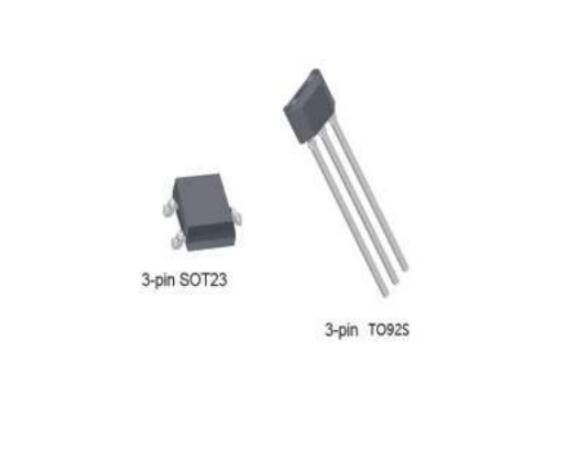

AH421 is a high-voltage resistant high-sensitivity unipolar Hall switch chip, designed with bipolar semiconductor (Bipolar) process. The chip internally consists of a voltage regulator unit, Hall voltage generator, differential amplifier circuit, temperature compensation circuit, and open collector output circuit. Working mode: input magnetic induction intensity, output digital voltage signal. Available in TO92S through-hole package and SOT23-3L SMD package, both compliant with RoHS standards.
1.Features of high-voltage resistant high-sensitivity unipolar Hall chip -AH421:
Microstructure
Open collector output
ESD performance: ±4kV
High sensitivity: 60/40Gs (typical)
Wide voltage range: 3.5V ~ 40V
Operating temperature range: -40°C ~ 125°C
2.Features of high-voltage resistant high-sensitivity unipolar Hall chip -Applications of AH421:
Brushless motor commutation
Flow sensors
Position sensors
Speed sensors
Distance sensors
