Product Introduction

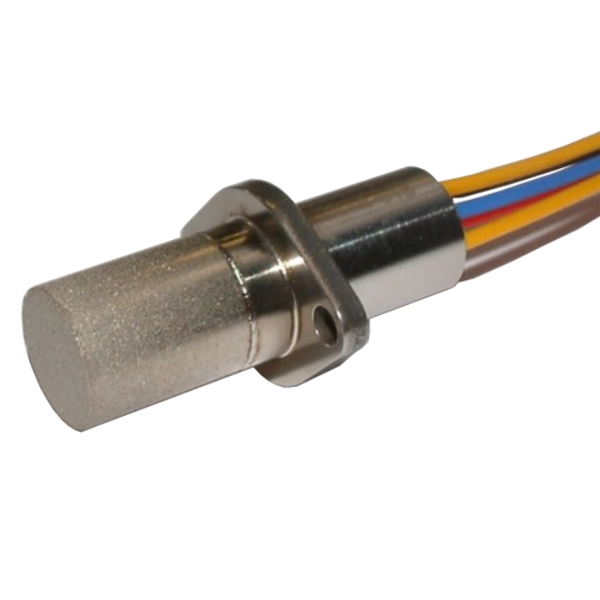

Honeywell Onboard Oxygen Sensor (O2 Sensor) KGZ-NGL
•High-precision measurement
•Low power consumption
•No reference gas required
•Linear output signal
•No temperature stabilization required
•Functional testing and calibration in ambient air
•Long service life
I.Honeywell Onboard Oxygen Sensor (O2 Sensor) KGZ-NGLProduct Description:
The oxygen sensor uses two zirconia discs with a sealed space between them. One disc functions as a reversible oxygen pump, alternately filling the sample gas and evacuating this small space. The other disc is used to measure the oxygen partial pressure difference ratio, yielding the corresponding sensing voltage. When the zirconia disc operates as an oxygen pump, the required700 °C The temperature is generated by a heating element. The time required for the oxygen pump to reach the rated minimum and maximum pressures within the small space corresponds to the ambient oxygen partial pressure value.
II.Honeywell Onboard Oxygen Sensor (O2 Sensor) KGZ-NGLProduct Features:
1) Non-consumptive zirconia sensing element
2)Response timeT90 < 4S
3)High stability and precision, measurable0.1…100% Oxygen
4) No cross-interference from other gases
5) Service life up to5years
6) Probe length80mm
7)Heater voltage:4.35VDC ± 0.1VDC (1.85A)
8)Allowable gas temperature: -100...250°C
III.Honeywell Onboard Oxygen Sensor (O2 Sensor) KGZ-NGLTypical applications:
Onboard inert gas generation system
Onboard oxygen generation system
