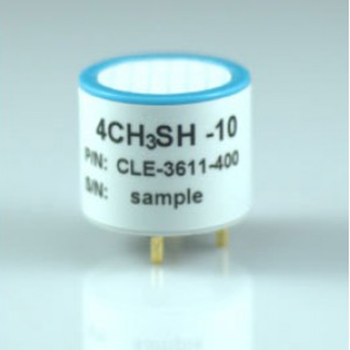

Honeywell Methyl Mercaptan Sensor - 4CH3SH-10

Range

10 ppm

Maximum Load

20 ppm

Sensitivity

0.70±0.15mA/ppm

Baseline (20oC)

<±0.4mA

Baseline Drift

Equivalent to 0 to 0.6 ppm

Temperature

(-20 to 50oC)

Resolution

0.1 ppm

Response Time (T90)

≤40 seconds

Linearity

Linear

Long-term Stability

<2% signal value/month

Operating Conditions

Operating Temperature

-20oC to 50oC

Operating Humidity

15 ~ 90%RH (non-condensing)

Operating Pressure

90 to 110 kPa

Bias Voltage

0 mV

Storage Time

6 months (in dedicated packaging box)

Storage Temperature

0oC to 20oC

Service Life

2 years in air

Warranty Period

12 months after delivery

Physical Properties

Weight

Approximately 5 grams

Orientation Requirements

None
