Product Introduction

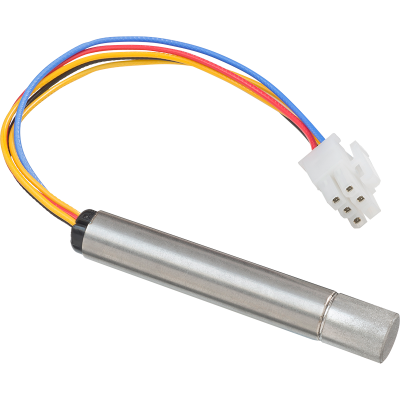

Honeywell Oxygen Sensor (O2 Sensor)- GMS10-WH
• High precision measurement
• Low power consumption
• No reference gas required
• Linear output signal
• No temperature stabilization required
• Functional testing and calibration in ambient air
• Long lifespan
I.Honeywell Oxygen Sensor (O2 Sensor)- GMS10-WHProduct Overview:
The oxygen sensor uses two zirconia discs with a sealed space in between. One disc functions as a reversible oxygen pump, sequentially filling the sample gas and evacuating this small space. The other disc measures the oxygen partial pressure difference ratio, generating a corresponding sensing voltage. When the zirconia disc operates as an oxygen pump, the required 700°C temperature is generated by a heating element. The time taken for the oxygen pump to reach the rated minimum and maximum pressures within the small space corresponds to the oxygen partial pressure in the environment.
II.Honeywell Oxygen Sensor (O2 Sensor)- GMS10-WHProduct Features:
1) Non-consumable zirconia sensing element
2) Response time T90 < 4S
3) High stability and accuracy, can measure 0.1...100% oxygen
4) No cross-interference from other gases
5) Lifespan up to 5 years
6) Probe length 80mm
7) Heater voltage: 4.35VDC ± 0.1VDC (1.85A)
8) Allowable gas temperature: -100...250°C
III.Honeywell Oxygen Sensor (O2 Sensor)- GMS10-WHTypical Applications:
Automotive exhaust gas analyzers
Motor vehicle exhaust analysis
Heating boiler control
Medical oxygen supply equipment
Industrial flue ducts
Burner oxygen content detection
Oxygen concentrators
Submarine oxygen compartments
Oxygen bars
Ship compartments
Oxygen measurement in controlled atmosphere storage
Residual oxygen detection in fermentation industry
Oxygen testing in biotechnology and medical systems
