Product Introduction

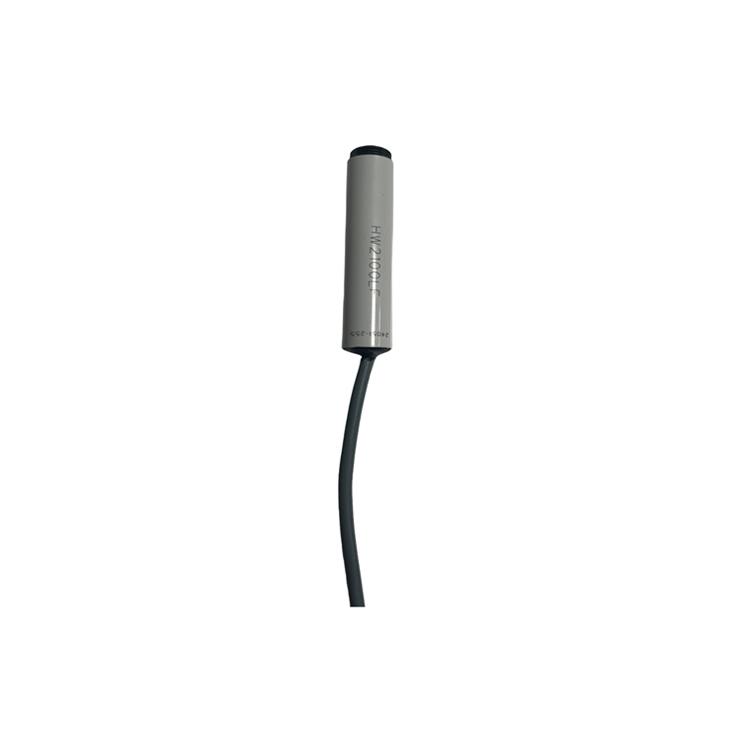

Humidity Sensor OEM ApplicationHW2100LF Overview:
HW2100LF is a humidity sensor under APOLLOSENSE's own brand. The core component uses imported TE capacitive humidity sensing technology, specially designed for OEM applications, providing reliable and accurate measurement.
Humidity Sensor OEM ApplicationHW2100LF Technical Specifications:
1. Small size product
2. Product is free of lead, chromium (6+), Cd, and mercury
3. Humidity calibrated at +/-3% @55%RH

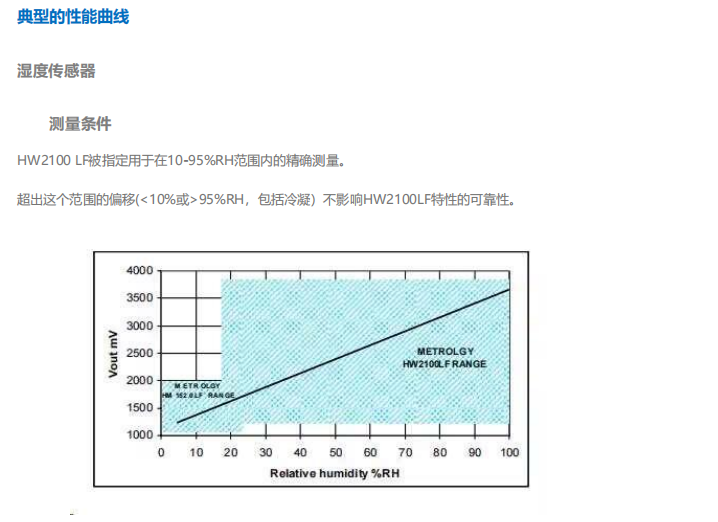

4. Typical 1 to 3.6 V DC output for 0 to 100%RH at 5Vdc supply
5. Voltage supply ratio from 4.75Vdc to 5Vdc
Humidity Sensor OEM ApplicationHW2100LF Features:
Fully interchangeable
High reliability, long-term stability
Waterproof design (IP67)
Very low temperature dependence
Suitable for 3 to 10 V DC Supply Voltage
Humidity Sensor OEM ApplicationHW2100LF Applications:
Industrial
Process Control
Inverters
Smart Buildings
Incubators

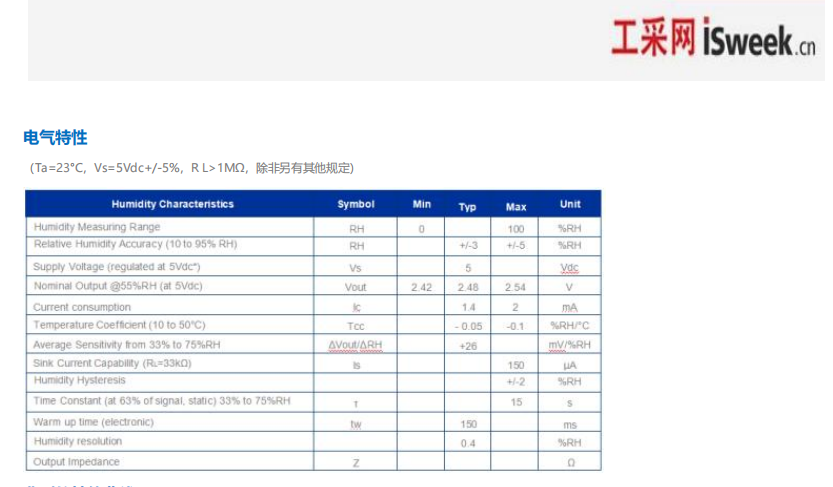

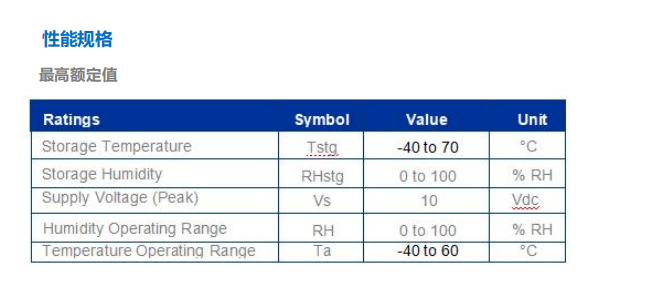

Humidity Sensor OEM ApplicationHW2100LF Parameters:
