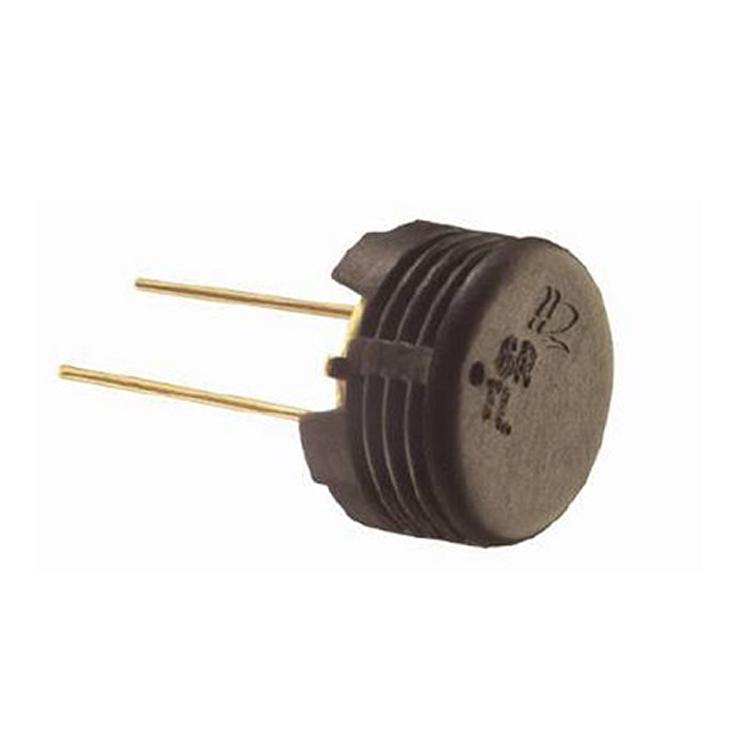

French Humirel capacitive humidity sensor - HS1101LF
• Lead-free
• High reliability, long-term stability
• Patented solid polymer structure
• Suitable for linear voltage output or frequency output circuits
• Fast response, low temperature coefficient
• Good interchangeability, no recalibration required under standard conditions
• Rapid recovery after prolonged saturation
• Suitable for automated assembly, including lead-free wave soldering and reflow soldering
• Individual marking for traceability
• Can be cleaned with distilled water
Product introduction
I.Capacitive humidity sensorHS1101LF product description:
The capacitive humidity sensor HS1101LF is a capacitive relative humidity sensor.Humidity sensorThe HS1101/HS1101LF sensor is based on a humidity-sensitive capacitive element designed with a unique process. Fully interchangeable, no calibration required under standard conditions, fast desorption after prolonged saturation, suitable for automated soldering including wave soldering, high reliability and long-term stability, patented solid polymer structure, can be used for linear voltage or frequency output circuits, fast response time. Suitable for large-volume, low-cost applications.
II. Capacitive humidity sensor HS1101LFFeatures:
Lead-free
High reliability, long-term stability
Patented solid polymer structure
Suitable for linear voltage output or frequency output circuits
Fast response, low temperature coefficient
Good interchangeability, no recalibration required under standard conditions
Rapid recovery after prolonged saturation
Suitable for automated assembly, including lead-free wave soldering and reflow soldering
Individual marking for traceability
Can be cleaned with distilled water
III. Capacitive humidity sensor HS1101LF applications
Temperature and humidity instruments, office automation, automotive cabin air control, household appliances, industrial process control systems.
IV. Capacitive humidity sensor HS1101LFTechnical parameters:
Capacitive element designed with unique process, patented solid polymer structure
High accuracy: ±2%RH, excellent linear output
Wide range: 1~99%RH, wide operating temperature range –60~140℃(HS1101LF), –40~100℃(HS1101)
Humidity output minimally affected by temperature, no temperature compensation needed at room temperature
Response time 5 seconds, anti-condensation, rapid recovery within 10 seconds after immersion or condensation
Anti-static, dust-proof, effectively resistant to various corrosive gases
Long-term stability and reliability, annual drift 0.5%RH/year
Good interchangeability
Capacitance vs. humidity change 0.31pF/%RH (HS1101LF), 0.3431pF/%RH (HS1101), typical value 180pF @55%RH
