Product Introduction

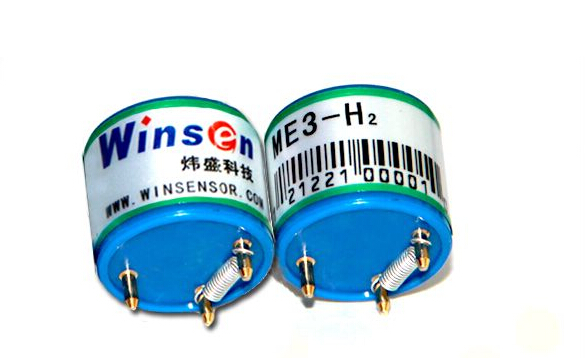

1. Hydrogen Sensor (H2 Sensor)ME3-H2 Product Description
The ME3-H2 electrochemical gas sensor operates on the electrochemical principle, where the target gas undergoes oxidation-reduction reactions on the working and counter electrodes, releasing charge and generating a current through the external circuit. The current is proportional to the gas concentration, enabling quantitative measurement of the target gas.
2. Features of Hydrogen Sensor (H2 Sensor) ME3-H2
High Sensitivity
Low Power Consumption
High Precision
Wide Linear Range
Strong Anti-Interference Capability
Excellent Repeatability and Stability
3. Main Applications of Hydrogen Sensor (H2 Sensor) ME3-H2
Widely suitable for hydrogen concentration detection in industrial and environmental fields
4. Technical Specifications of Hydrogen Sensor (H2 Sensor) ME3-H2
| Nominal Range |
0-1000ppm |
| Overload |
2000ppm |
| Expected Service Life |
2 years in air |
| Output Signal |
0.010±0.005 uA/ppm |
| Resolution |
2ppm |
| Temperature Range |
-20℃-50℃ |
| Pressure Range |
Standard atmospheric pressure ±10% |
| Response Time (T90) |
<90 seconds |
| Relative Humidity Range |
15﹪—90﹪RH |
| Zero Drift (20°C-40°C) |
-20ppm equivalent |
| Long-Term Output Signal Drift |
<2% signal loss/month |
| Recommended Load Resistor |
10Ω |
| Bias Voltage |
None required |
| Repeatability |
1% of signal |
| Output Linearity |
Linear |
