Product Introduction
-

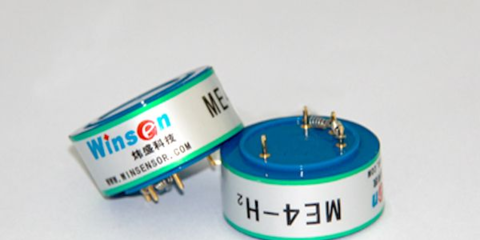

Hydrogen Sensor (H2 Sensor) ME4-H2 Product Description
-
The ME4-H2 sensor is a constant potential electrolytic H2 sensor. H2 and O2 undergo corresponding oxidation-reduction reactions on the working electrode and counter electrode, releasing charge to form a current. The magnitude of the current is proportional to the H2 concentration. By measuring the current, the H2 concentration can be determined.
-
Hydrogen Sensor (H2 Sensor) ME4-H2Sensor Features
-
Low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference capability, excellent repeatability and stability.
-
Hydrogen Sensor (H2 Sensor) ME4-H2Main Applications
-
Widely suitable for hydrogen detection in industry and environmental protection.
-
Hydrogen Sensor (H2 Sensor) ME4-H2Technical Specifications
| Item | Parameter |
| Detection Gas | Hydrogen (H2） |
| Range | 0-1000ppm |
| Measuring Limit | 2000ppm |
| Sensitivity | 0.03±0.01uA/ppm |
| Resolution | 1ppm |
| Response Time (T90) | ≤30s |
| Bias Voltage | 0mV |
| Load Resistance (Recommended) | 10Ω |
| Repeatability | <2% of output value |
| Stability (per month) | ＜2﹪ |
| Output Linearity | Linear |
| Zero Drift (-20°C to 40°C) | ≤10ppm |
| Temperature Range | -20℃～50℃ |
| Humidity Range | 15%-90% RH non-condensing |
| Pressure Range | Standard atmospheric pressure ±10% |
| Detection Life | 2 years |
