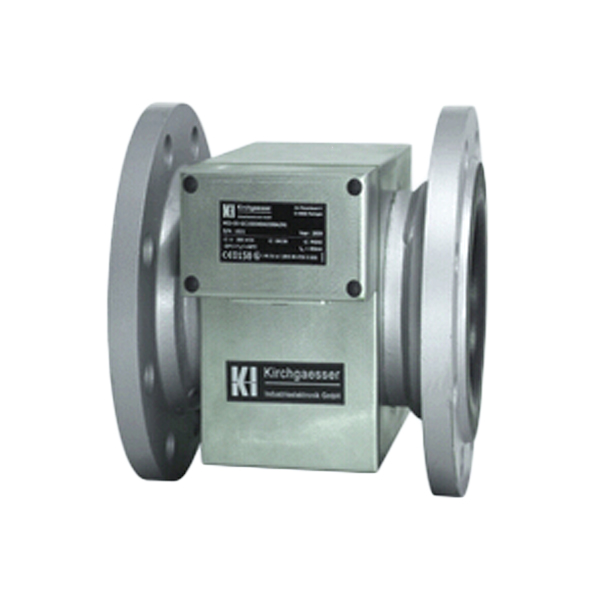

German Kirchgaesser Electromagnetic Flowmeter - MID-EX-GL

I.MID-EX-GLElectromagnetic Flowmeter Features:
• Rugged and durable, safe and worry-free, large flow integrated signal processing sensor
• Nominal diameter DN50 to DN300, optional high-pressure connectors (SSKV heavy version)
• No moving parts ensures no wear and maintenance-free
• No additional components inside the pipe, no extra pressure loss

II.MID-EX-GLComprehensive Guide to Electromagnetic Flowmeters
• Flow sensor specially designed for measuring conductive fluid flow, such as water, emulsions, sludge, slurry, and paste
• This flow sensor is completely sealed except for the terminal housing
• Housing made of stainless steel and reinforced glass fiber polyester material, (terminal housing is) graphite
• Nominal pressure range: 100 bar (10 MPa) to 500 bar (50 MPa), special versions with 500 bar (50 MPa) high-pressure connectors
• Flow measurement ranges are 0 - 100 l/min (DN50) to 0 - 1000 l/min (DN150) and 0 - 10 m³/h (DN50) to 0 - 2000 m³/h (DN300)
• Suitable for various electrical connections

III.MID-EX-GLElectromagnetic Flowmeter Technical Parameters:
• Measuring principle: magnetic inductive
• Flow measurement range:
0 – 100 l/min (DN50) to 0 - 1000 l/min (DN150)
  0 - 10 m³/h (DN50) to 0 - 2000 m³/h (DN300)
• Power supply output voltage: 9.0 - 13.5 VDC
• Power consumption: max. 480 mA
• Output signal:
- Current 4 - 20 mA
- Frequency 5 - 15 Hz
• Protection class IP 65 per EN 60529
• Certified per 94/9/EC (ATEX): I M1 Exia I (BVS 09 ATEX E 020)
• Ambient and medium temperature: -20°C - 60°C
• Measurement error: max. ± 1% of final value, typ. ± 0.5% of final value
