Product Introduction

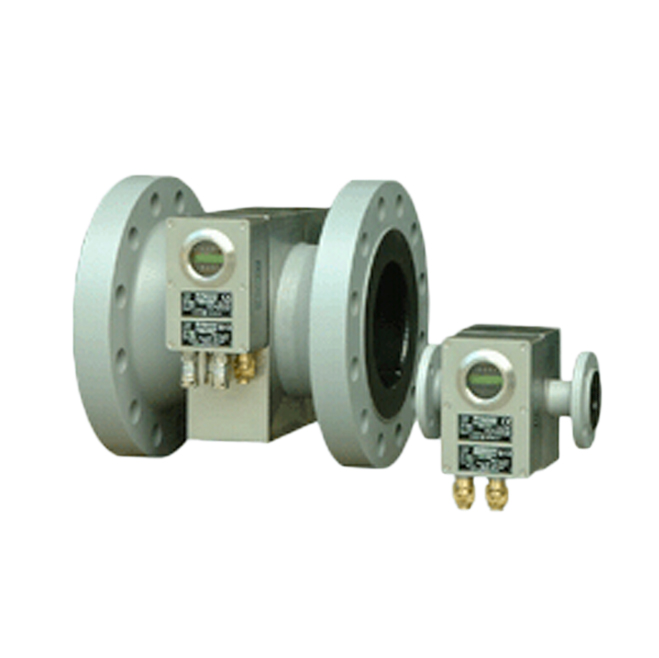

MIDEX Electromagnetic Flowmeter Features:
• Durable, safe and worry-free, safe general mining flow measurement equipment
• Nominal diameter: DN50 to DN300
• Nominal pressure: PN10 to PN500
• No moving parts ensures no wear and maintenance-free
• No other components inside the pipe, no pressure loss
• Fully guided structure
• Suitable for all common media connections
• On-site digital display with potential-free optocoupler output status indication
• Optional high-precision supply and return temperature measurement
• Cooling/heating capacity controlled by two optional temperature sensors
• Medium throughput can be displayed and evaluated like a water meter mode
• 8 outputs with potential-free optocouplers can be configured for the following output operations:
- Frequency of flow, temperature and cooling capacity, 5 - 15 Hz
- Pulse
- Limit
- Flow direction
- Medium monitoring
• Control input for adjustment (periodic input)
MIDEX Electromagnetic FlowmeterTechnical Parameters:
• Measurement principle: Magnetic induction
• Measurement range: Programmable (see additional information if within nominal diameter range)
• Outputs: Up to 8 programmable outputs:
- Frequency 5 - 15 Hz
- Pulse
- Limit
- Flow direction
- Medium monitoring
• Input: Fine adjustment (periodic input)
• Power supply: 9.5 - 13.0 V
• Power consumption: 500 mA
• Protection class IP65, compliant with EN 60529 standard
• Certified according to 94/9/EC (ATEX): I M2 EExia I (DMT 02 ATEX E 115)
• Ambient temperature: max +60°C
• Measurement error range: Flow max ± 1% of final value, typ. ± 0.5% of final value
• Temperature: max ± 0.2 K
