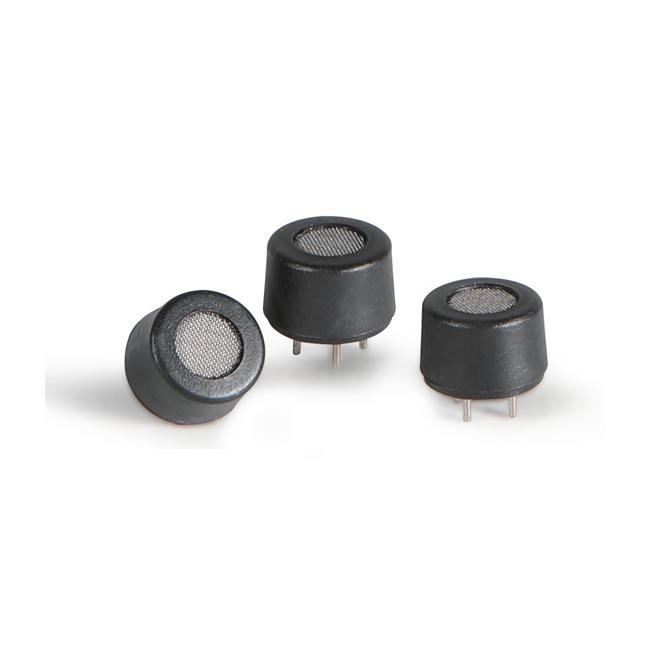

South Korea KNC Catalytic Combustion Type Combustible Gas Sensor - KGS601
Catalytic bead gas sensor with linear response to reaction
Widely used in fixed gas detectors for home and industrial use
Resistant to external impact
Fast response and short recovery time
Product Introduction
South Korea KNCCatalytic Combustion Type Combustible Gas SensorKGS601 Features:
Catalytic bead gas sensor with linear response to reaction
Widely used in fixed gas detectors for home and industrial use
Resistant to external impact
Fast response and short recovery time
South Korea KNCCatalytic Combustion Type Combustible Gas Sensor KGS601 Parameters:
| Detection Gas |
Most combustible gases |
||
| Range |
0 ~ 100 %LEL |
||
| Operating Voltage |
2.4±0.1 V |
||
| Operating Current |
>180 mA |
||
| Output Sensitivity |
35±5 mV / %CH4 |
||
| Zero Offset Voltage |
-50 ~ 20mV (23±2℃, 60%RH) |
||
| Linearity |
3 %CH4 |
||
| T90 Response Time |
Within 10 seconds (CH4) |
||
| Operating Temperature Range |
-20℃ ~ 50℃ |
||
| Storage Temperature Range |
-30℃ ~ 70℃ | ||
Flow rate of 300mls/min. Conditions at 23±2℃, 60%RH, and 1 atm
