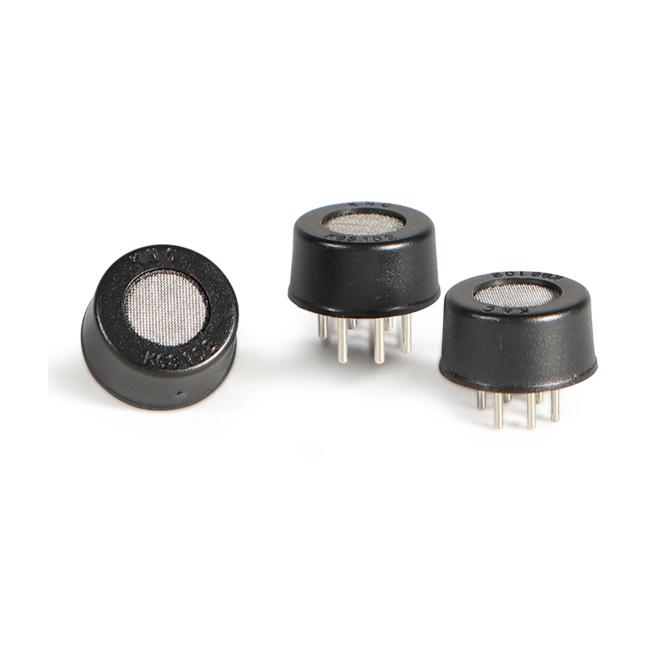

Korea KNC Semiconductor Gas Sensor - KGS102
Semiconductor gas sensors widely used for general purposes
Sensitive to combustible and reducing gases
Suitable for gas alarms, air purification systems, automatic ventilation systems, etc.
Fast response and short recovery time
Product Introduction
KGS 102 is a SnO₂ semiconductor gas sensor widely used in gas detection, air purification systems, automatic ventilation systems, microwave ovens and other equipment.
In a clean environment, the sensor resistance is high.
However, as the concentration of water vapor or gas in the atmosphere increases, the resistance decreases.
The KGS 102 gas sensor features excellent resistance to airflow, extremely fast response speed, and outstanding durability.
Korea KNC Semiconductor Gas Sensor KGS102 Features:
Semiconductor gas sensors widely used for general purposes
Sensitive to combustible and reducing gases
Suitable for gas alarms, air purification systems, automatic ventilation systems, etc.
Fast response and short recovery time
Korea KNC Semiconductor Gas Sensor KGS102 Parameters:
| Detection Gas |
Combustible gases and volatile organic compounds |
||
| Power Consumption |
800±50 mW |
||
| Heater Current |
160±10 mA |
||
| Heater Voltage |
AC or DC 5V |
||
| Circuit Voltage |
AC or less than DC 12 V *DC 5 V recommended |
||
| Load |
Variable |
||
| Operating Temperature and Humidity |
-10℃ ~ 50℃, 30 ~85%RH |
||
| Storage Temperature |
-30℃ ~ 50℃ |
||
| Sensitivity Characteristics |
Rs (air) |
20~ 80kΩ in clean air at 25℃, 60% RH |
|
|
|
Gas |
Rs (CH41000 ppm) / Rs (air) < 1/3 |
|

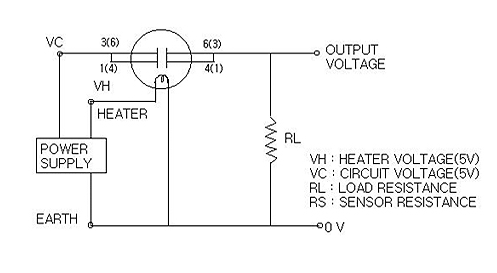

The variation in resistance of the sensor(Rs) is measured as a change in the voltage across the load resistor(RL). The sensor resistance (Rs) is calculated from output voltage(VRL) by the following formula.
Rs = (Vc / VRL- 1) x RL
