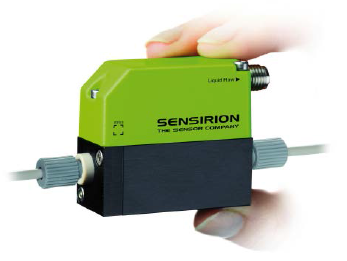

Liquid Flow Meter - SLI-0430

Liquid Flow Meter SLI-0430 Product Description

Liquid Flow Meter SLI-0430Customized integrated flow control system: The new SLI is a high-precision solution for measuring water or hydrocarbon-based (alcohol, solvent, oil, gas, adhesive) media.

Thanks to Sensirion's well-proven thermal microsensor technology, the SLI opens new heights in sensitivity, stability, and speed. Fast response and ultra-high precision ensure the SLI flow meter can accurately monitor highly dynamic process control, such as dosing systems. The sensor has no moving parts and performs non-invasive measurement through the wall of a straight-through flow channel. Dedicated highly inert biocompatible materials (quartz glass, PEEK, or PTFE) ensure compatibility of wetted materials with liquid media.

Based on an intelligent RS485 digital interface, the sensor enables long-distance communication, has a large bus capacity, and can automatically determine total dispensed volume. Actual dispensed volume is available at any time.

Liquid Flow Meter SLI-0430Features

Water-based liquid flow: 50 µL/min
Hydrocarbon flow: 0.5 mL/min
Accuracy better than 1% of reading
Sensitivity down to 1 µL/min
Fast response time down to 40 ms
Intelligent RS485 digital interface
No moving parts, straight-through path, superior media compatibility
Wetted materials: glass, PEEK, and PTFE (inert, biocompatible)

Liquid Flow Meter SLI-0430Applications

• Full process monitoring

• Pump control

• Fuel flow monitoring

• Lubricant dosage monitoring

• Spray monitoring

• Leak detection
