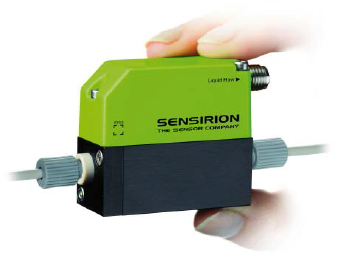

Liquid Flow Meter - SLI-1000

Liquid Flow Meter SLI-1000 Product Description

Liquid Flow Meter SLI-1000Customized integrated flow control system: The new SLI is a high-precision solution for measuring water or hydrocarbon-based (alcohol, solvents, oils, gases, adhesives) liquids.

Thanks to Sensirion's fully validated thermal microsensor technology, the SLI opens new heights in sensitivity, stability, and speed. Fast response and ultra-high precision ensure the SLI flow meter can precisely monitor highly dynamic process control, such as dosing systems. The sensor has no moving parts and performs non-invasive measurement through the wall of the straight-through flow channel. Specially selected highly inert biocompatible materials (quartz glass, PEEK, or PTFE) ensure compatibility between wetted materials and liquid media.

Based on an intelligent RS485 digital interface, the sensor can communicate over long distances, has a large bus capacity, and can automatically determine total dispensed volume. Actual dispensed volume is available at any time.

Liquid Flow Meter SLI-1000Features

Water-based liquid flow: up to 1 ml/min
Hydrocarbon flow: up to 10 ml/min
Accuracy better than 1% of reading
Sensitivity down to 1 ul/min
Fast response time down to 40 ms
Intelligent RS485 digital interface
No moving parts, straight-through flow path, excellent media compatibility
Wetted materials: glass, PEEK, and PTFE (inert, biocompatible)

Liquid Flow Meter SLI-1000Applications

• Process monitoring

• Pump control

• Fuel flow monitoring

• Lubricant dosage monitoring

• Spray monitoring

• Leak detection
