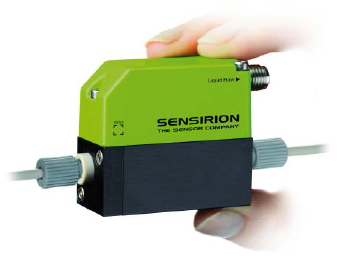

Liquid Flow Meter - SLI-2000

Liquid Flow Meter SLI-2000 Product Description

Customized integrated flow control system: The new SLI is a high-precision solution for measuring water or hydrocarbon-based (alcohol, solvents, oils, gases, adhesives) liquids.

Utilizing Sensirion's well-proven thermal microsensor technology, the SLI opens new heights in sensitivity, stability, and speed. Fast response and ultra-high precision ensure the SLI flow meter can accurately monitor high-dynamic process control, such as dosing systems. The sensor has no moving parts and performs non-invasive measurement through the wall of a straight-through flow channel. Specialized high-inertia biocompatible materials (quartz glass, PEEK, or PTFE) ensure compatibility of wetted materials with liquid media.

Based on a smart RS485 digital interface, the sensor enables long-distance communication, has a large bus capacity, and can automatically determine total dispensed volume. Actual dispensed volume is available at any time.

Liquid Flow Meter SLI-2000Features
Water-based liquid flow: 5 ml/min
Hydrocarbon flow: 80 ml/min
Accuracy better than 1% of reading
Sensitivity down to 1 ul/min
Fast response time down to 40 ms
Smart RS485 digital interface
No moving parts, straight-through path, superior media compatibility
Wetted materials: glass, PEEK, and PTFE (inert, biocompatible)

Liquid Flow Meter SLI-2000Applications

• Process monitoring

• Pump control

• Fuel flow monitoring

• Lubricant dosage monitoring

• Spray monitoring

• Leak detection
