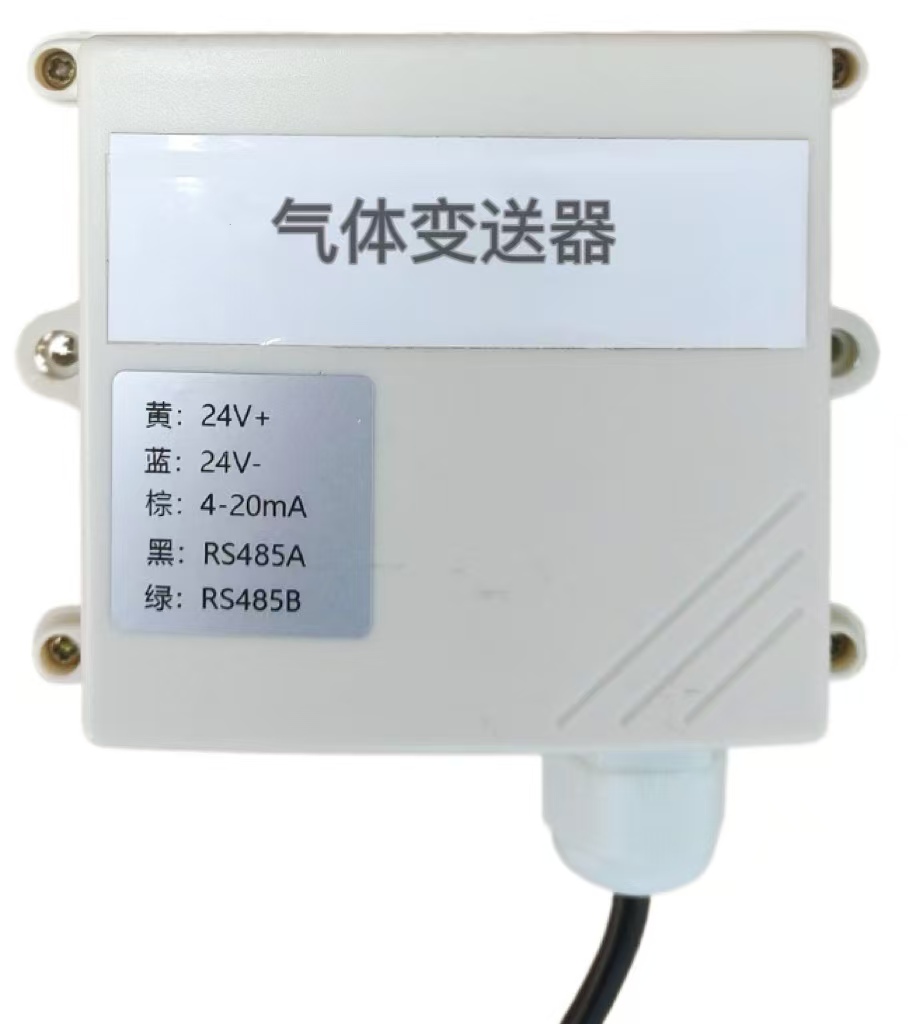

Product Introduction
High measurement accuracy, up to within ±5%FS, and repeatability up to within 2%.
Optional high-quality OLED display, allowing direct on-site reading of values, and clear display even at night.
On-site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site.
The product adopts a wall-mounted waterproof enclosure, is easy to install, and has a high protection rating, making it suitable for harsh on-site environments.
| Power supply | 10~30V DC |
| Power consumption | 0.9W |
| Temperature measurement range | -40℃~+80℃ |
| Humidity measurement range | 0~100%RH |
| Temperature Accuracy | ±0.5℃（25℃） |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| 工作温度 | -20~50℃ |
| Working humidity | 15~90%RH non-condensing |
| Pressure range | 90~110kPa |
| Stability | ≤2% signal value/month |
| Response time | ≤70s |
| Preheating Time | ≥5min |
| Zero Drift | ≤±20ppm |
| Repeatability | ≤2% |
| Measuring range | 0~1000ppm |
| 分辨率 | 1ppm |
Main Application Areas
- Hydrogen Storage Facilities — Continuous monitoring of hydrogen leaks in storage tanks and pipelines to ensure safety.
- Chemical Plants — Real-time detection of hydrogen concentration in production areas to prevent explosions.
- Fuel Cell Systems — Monitoring hydrogen levels in fuel cell stacks and supply lines for optimal performance.
- Laboratories — Accurate hydrogen measurement in research and testing environments.
- Petroleum Refining — Hydrogen leak detection in refining processes to maintain operational safety.
Keywords：hydrogen transmitter, long-lasting hydrogen sensor, industrial hydrogen detector, hydrogen gas sensor, H2 transmitter, hydrogen leak detector, hydrogen monitoring system, gas transmitter
