Product Introduction

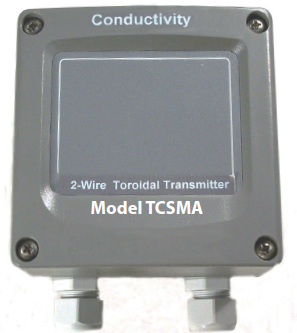

I. Description of TCSMA Loop-powered Isolated Toroidal Conductivity Transmitter
TCSMA is specifically designed for online monitoring of water treatment applications and aggressive process chemicals.
The blind transmitter is ideal for applications requiring a 4-20mA signal where instrument reliability is critical.
Key features include: selectable measurement ranges, adjustable temperature compensation (%/°C), isolated output, and reversible cell drive.
Durable NEMA 4X (IP66) enclosure, mountable on wall, pipe, or DIN rail.
Pairing TCSMA with TCS3020 toroidal sensor ensures trouble-free service. TCS3000 and TCS3020 sensors are available in modified polyphenylene oxide (Noryl) construction
and can be installed in a custom flow cell (FC95C) for online use.
II. Features of TCSMA Loop-powered Isolated Toroidal Conductivity Transmitter
4-20mA isolated output, loop-powered (16-35VDC),
User-adjustable temperature compensation (0-4%/°C),
Selectable measurement ranges,
Adjustable zero and span,
Direct/reverse operation.
III. Specifications of TCSMA Loop-powered Isolated Toroidal Conductivity Transmitter:
Measurement range 0-100,000 uS, factory preset as 4-20mA
Ranges 2000-2500uS / 2500-15,000uS / 15,000-100,000uS / 100,000-1,000,000uS
Sensitivity 0.1%
Repeatability 0.2% of span
Non-linearity 1% of span for ranges >3000uS/cm—2% of span for ranges <3000uS/cm
Zero drift <1% of span/month, non-cumulative
Operating conditions -20 to 60 deg C, 0-95% R.H non-condensing
Temperature drift 0.06% of range /degC, span or zero
Stability 0.2% of range/24 hours, non-cumulative
Output isolation inherent isolation by sensor design
Response time 5 seconds to 90% of full scale
