Product Introduction

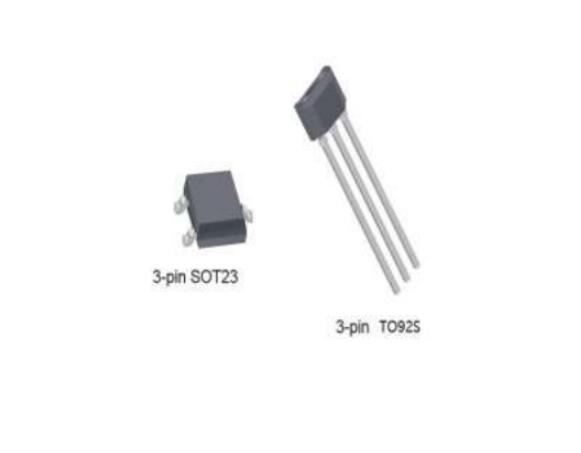

The AH602 is a compact, multifunctional, and economical linear Hall sensor. Its working principle is that when a magnetic field is applied, the output voltage changes proportionally to the input, and the static output voltage is set by the supply voltage. This sensor features low noise output and requires no external filtering. It can be connected to electrical components without buffering. It also includes precision resistors for better temperature stability and accuracy. The operating temperature range is -40°C to 150°C, making it suitable for consumer electronics, industrial, and medical environments. It is available in TO92S and SOT23-3L packages and complies with RoHS standards.
1.Low-Grade Linear Hall Chip -Features of AH602:
Small size
Low power consumption: 5mA at 5VDC
Voltage range: 3VDC to 12VDC
Low noise output
Operating temperature range: -40°C to 150°C
Different responses to south and north magnetic fields
ESD performance up to ±4kV
2.Low-Grade Linear Hall Chip -Applications of AH602:
Current detection
Motor control
Position detection
Magnetometers
Rotary encoders
Metal detectors
Level Sensors
Weight sensors
