Product introduction

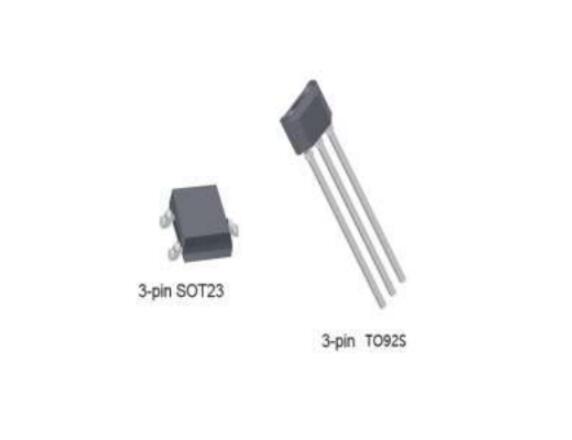

The AH469M is a low-power, high-sensitivity bipolar Hall-effect switch chip manufactured using CMOS technology. The device integrates a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. It features good temperature stability, high stress resistance, and high sensitivity, with an operating voltage of 1.8V to 5.5V. It is available in TO92S through-hole package and SOT23-3L SMD package, both compliant with RoHS environmental standards.
1.Features of the low-power high-sensitivity bipolar Hall-effect chip -AH469M:
CMOS output
ESD performance: ±6kV
Operating voltage: 1.8V～5.5V
Micro-power battery-powered applications
Bipolar output switch
2.Features of the low-power high-sensitivity bipolar Hall-effect chip -Applications of AH469M:
Solid-state switches
Instruments and meters
Laptops
PDA
