Product introduction

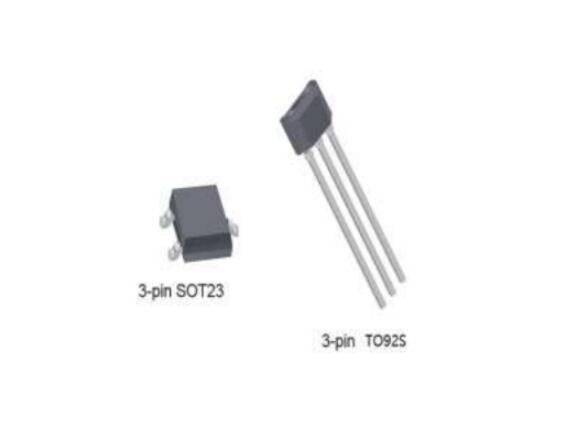

AH463 is a low-power, high-sensitivity omnipolar Hall switch chip designed and manufactured using CMOS technology. The device integrates a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. It features good temperature stability, strong stress resistance, and high sensitivity, with an operating voltage of 2.5V to 5.5V. Available in TO92S through-hole package and SOT23-3L SMD package, both compliant with RoHS environmental standards.
1.Features of the low-power high-sensitivity omnipolar Hall chip -AH463:
Push-pull output
ESD performance: ±6kV
Operating voltage: 2.5V ~ 5.5V
Micro-power battery-powered applications
Omnipolar output switch
2.Features of the low-power high-sensitivity omnipolar Hall chip -Applications of AH463:
Solid-state switches
Bluetooth headphone charging cases
Portable disinfection boxes
Laptops
Magnetic sensor switches replacing reed switches in low-duty-cycle applications
Level gauges
Proximity switches
