Product introduction

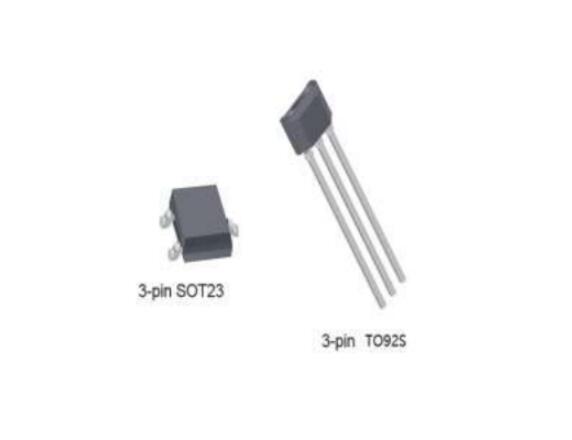

The AH466 is a low-power, high-sensitivity omnipolar Hall switch chip designed and manufactured using CMOS technology. The device integrates a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. The chip features good temperature stability, strong stress resistance, and high sensitivity, with an operating voltage of 2.5V to 5.5V. It is available in TO92S through-hole package and SOT23-3L surface-mount package, both compliant with RoHS environmental standards.
1.Low-power high-sensitivity omnipolar Hall sensor chip -Features of AH466:
Push-pull output
ESD performance: ±6kV
Operating voltage: 2.5V to 5.5V
Micro-power battery-powered applications
Omnipolar output switch
2.Low-power high-sensitivity omnipolar Hall sensor chip -Applications of AH466:
Solid-state switches
Bluetooth headphone charging cases
Portable disinfection boxes
Laptops
Magnetic sensing switches replacing reed switches in low duty cycle applications
Level gauges
Proximity switches
